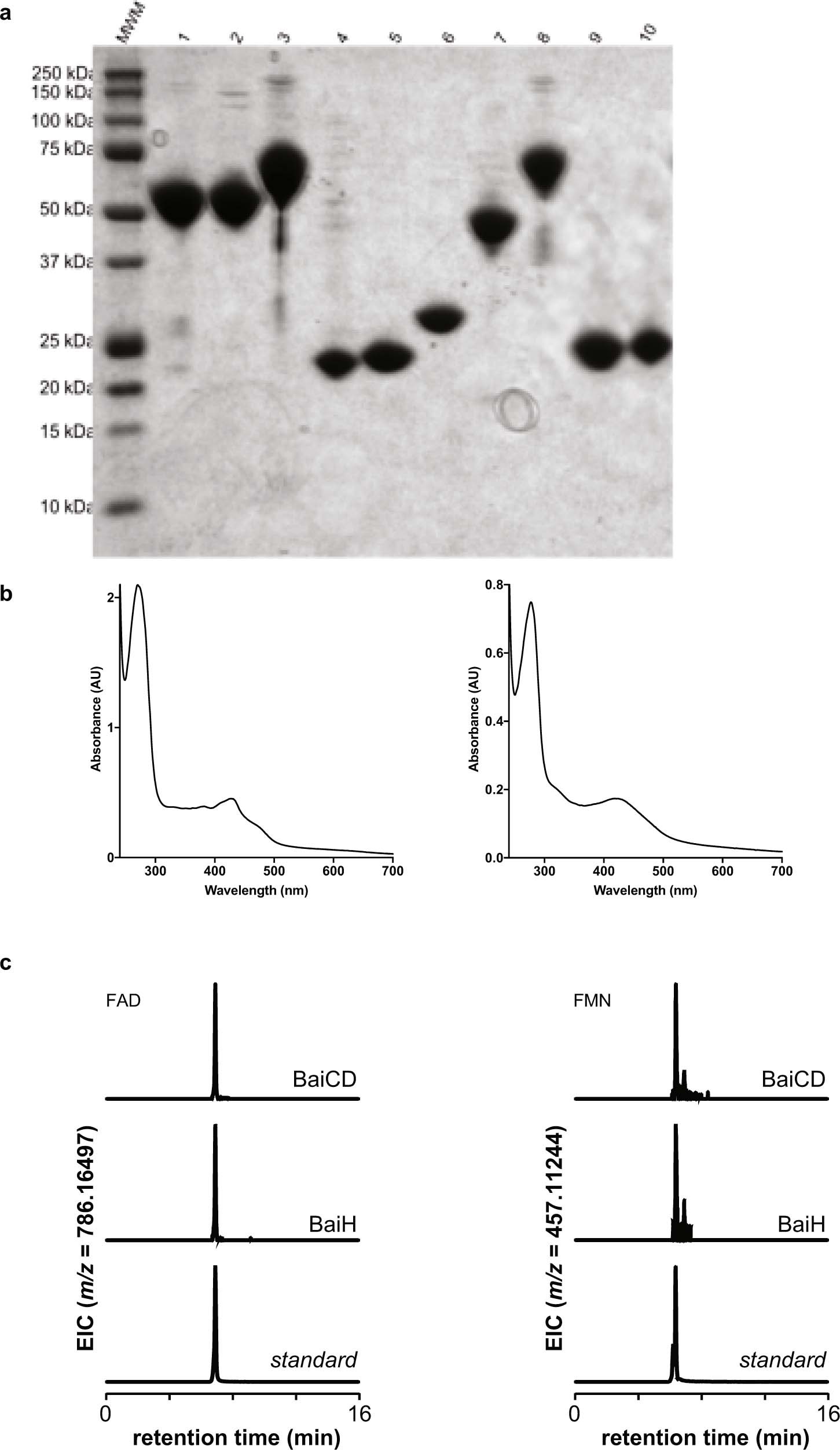

Extended Data Fig. 2: Purification of recombinant Bai proteins.
From: A metabolic pathway for bile acid dehydroxylation by the gut microbiome
a, SDS–PAGE analysis of purified Bai proteins after Ni-affinity and size-exclusion purification, visualized by Coomassie blue staining. The image was generated using a Bio-Rad Gel Doc Universal Hood II Molecular Imager. MWM, molecular weight marker; 1, BaiB from C. scindens; 2, BaiB from C. hylemonae; 3, BaiCD from C. hiranonis; 4, BaiE from C. scindens; 5, BaiE from C. hiranonis; 6, BaiA2 from C. scindens; 7, BaiF from C. hylemonae; 8, BaiH from C. scindens; 9, BaiI from C. scindens; 10, BaiI from C. hiranonis.b, Ultraviolet–visible spectra of BaiCD from C. hiranonis (24 μM, left) and BaiH from C. scindens (13 μM, right). Features at 370 nm and 450 nm are indicative of flavin bound to BaiCD and BaiH, and are partially obscured by the presence of a [4Fe–4S] cluster, which has broad absorbance between 300 nm and 700 nm. c, The presence of FMN and FAD is confirmed by mass spectrometry. Experiments in a–c were repeated independent twice, with similar results.
