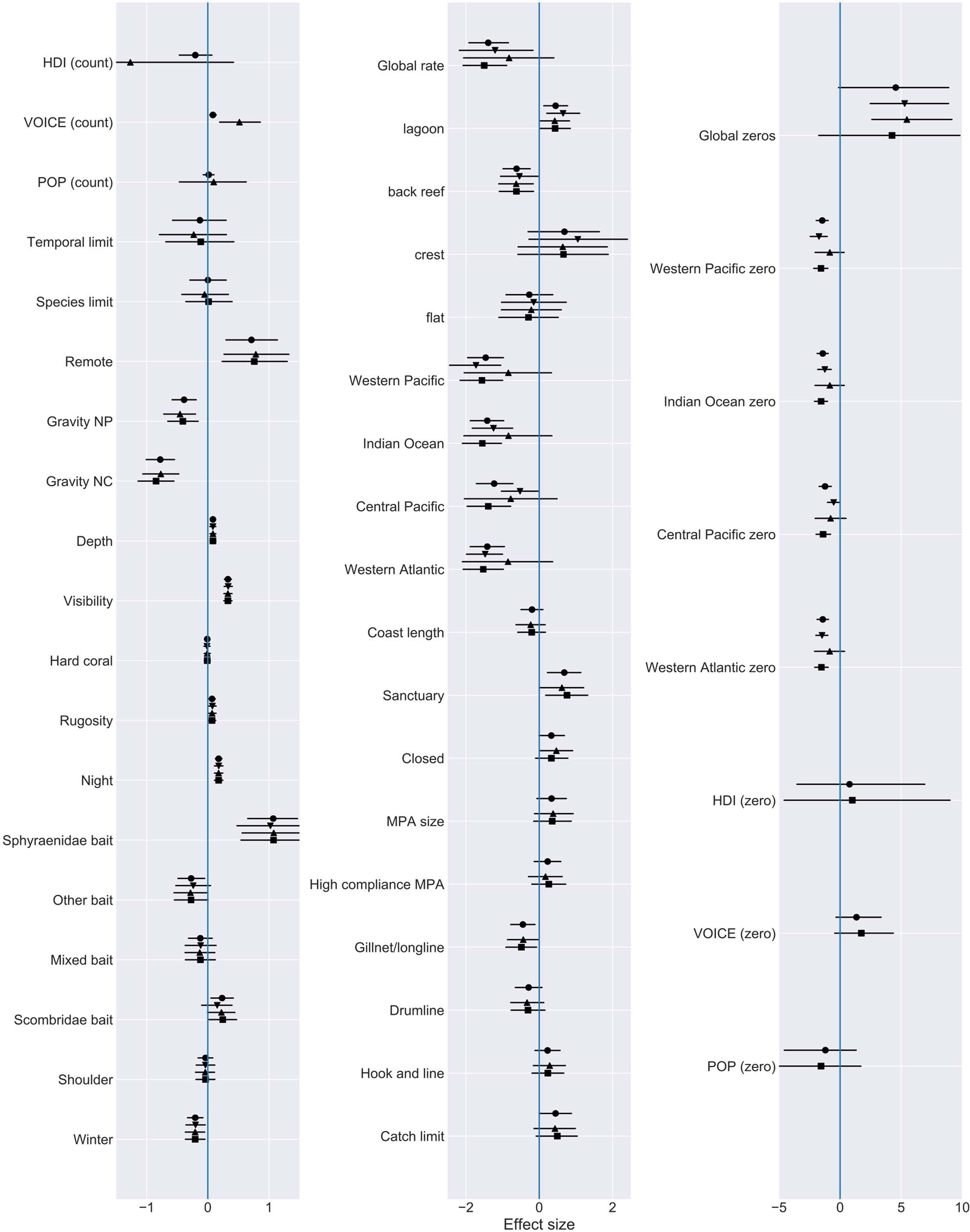

Extended Data Fig. 3: Forrest plot of ZINB posterior distribution effect sizes for candidate models.
From: Global status and conservation potential of reef sharks
Left and centre columns, covariates present in the count component of the model. Right column, covariates present in the zero-inflation component of the model. The median (circles) and 95% (thin horizontal lines) highest posterior density (credible) intervals for four independent Markov chain Monte Carlo chains (left) are shown. Models with PSIS-LOO-based weights >0 include the ZINB full model (77% weight; squares), the ZINB full count model (16% weight; upwards pointing triangle) and ZINB partial null (7% weight; downwards pointing triangle); circles indicate model-weighted estimates used for inference. R-hat values for all parameters were between 1.01 and 1, suggesting no evidence that models failed to converge. Note the differences in the scale along the x axes.
