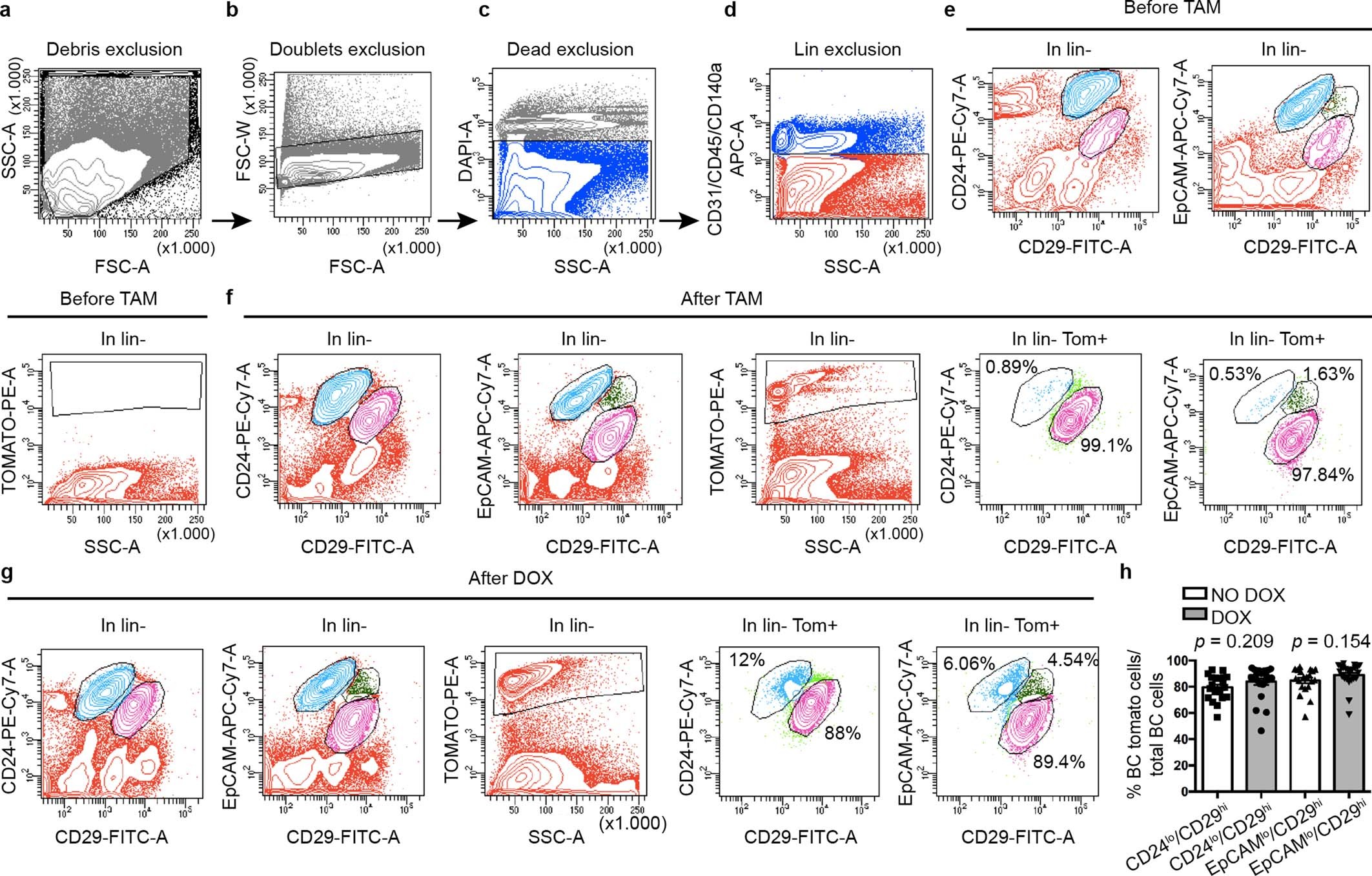

Extended Data Fig. 1: FACS analysis of MG epithelial cells.
From: Heterotypic cell–cell communication regulates glandular stem cell multipotency

a–d, Unicellular suspension of MG cells from adult K5CreER/tdTomato/K8rtTA/TetO-DTA mice induced at 8 weeks stained for endothelial, immune and fibroblast markers (Lin+) (CD31, CD45, CD140a) in APC, EpCAM in Apc-Cy7 and CD29 in FITC, were gated to eliminate debris (a), doublets were discarded with gates (b), the living cells were gated by DAPI dye exclusion (c) and the non-epithelial Lin+ cells were discarded (d). CD24/CD29 and EpCAM/CD29 expression was studied in Lin−. e–g, CD24/CD29 gates, EpCAM/CD29 gates and the absence of leakiness of fluorescent reporter recombination before tamoxifen injection (e), after tamoxifen injection (f) and after DOX injection (g). The CD29lowCD24high and the CD29lowEpCAMhigh gate corresponds to LCs, the CD29highCD24low and the CD29highEpCAMlow gate corresponds to BCs, the CD29highEpCAMhigh correspond to the new population described in this manuscript. A total of 400,000 events is shown in the graphs. Percentages are calculated on the total LCs and BCs or LCs, CD29highEpCAMhigh and BCs shown. n = 3 independent experiments per condition. h, Graph showing the percentage of BCs that were tdTomato-labelled on the total number of BCs gated on CD24/CD29 before DOX injection (79.5 ± 2.2%; n = 20 mice, data are mean ± s.e.m.) after DOX injection (CD24 83.9 ± 2.6%; n = 23 mice, data are mean ± s.e.m.) and EpCAM/CD29 before DOX injection (84.8 ± 2.2%; n = 20 mice, data are mean ± s.e.m.) and after DOX injection (88.9 ± 1.9%; n = 23 mice, data are mean ± s.e.m.). P values are derived from unpaired two-sided t-tests.
