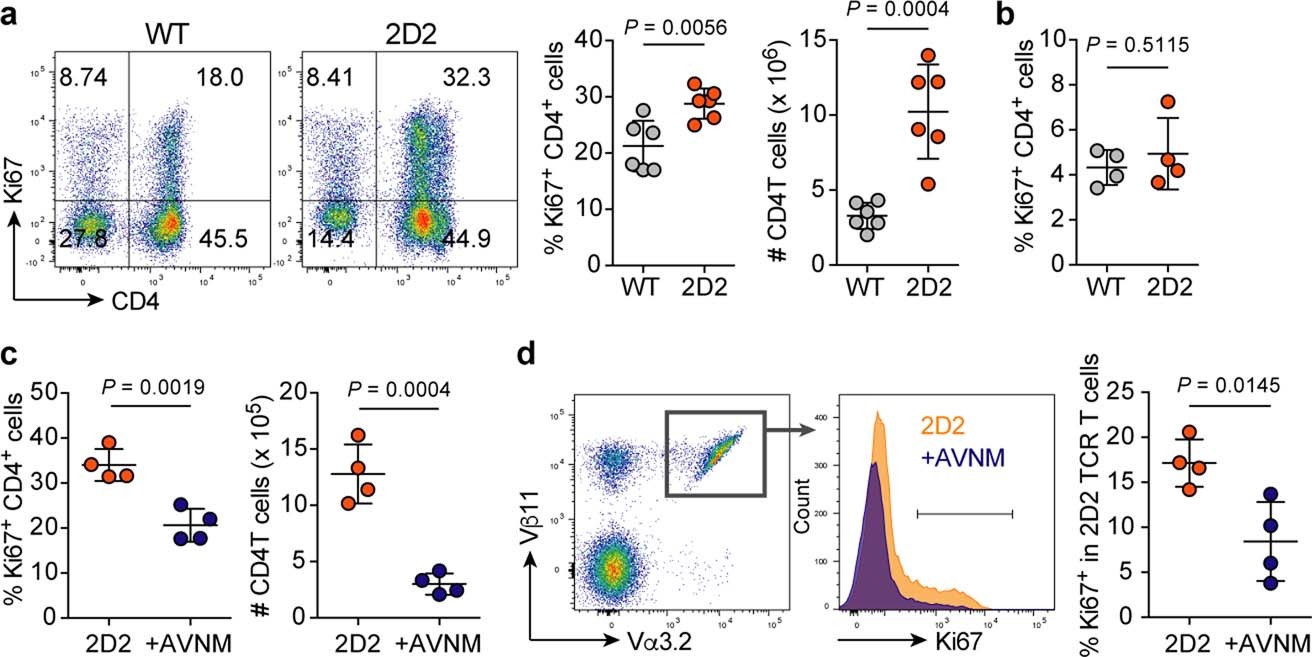

Extended Data Fig. 4: Microbiota-dependent proliferation of MOG-specific 2D2 TCR T cells in the small intestine.
From: Gut microorganisms act together to exacerbate inflammation in spinal cords
a, b, Representative FACS plots (gated on CD3+ cells) and percentage of Ki67+CD4+ T cells and absolute number of CD4+ T cells in the small-intestinal lamina propria (a, n = 6 mice) and spleen (b, n = 4 mice) of wild-type and 2D2 mice. c, Percentage of Ki67+CD4+ T cells and absolute numbers of CD4+ T cells in the small-intestinal lamina propria of non-treated or AVNM-treated (+AVNM) 2D2 mice (n = 4 mice). d, Percentage of Ki67+ in 2D2 TCR (Vα3.2+Vβ11+) cells (n = 4 mice). Data are mean ± s.d. P values were calculated using two-tailed unpaired t-test.
