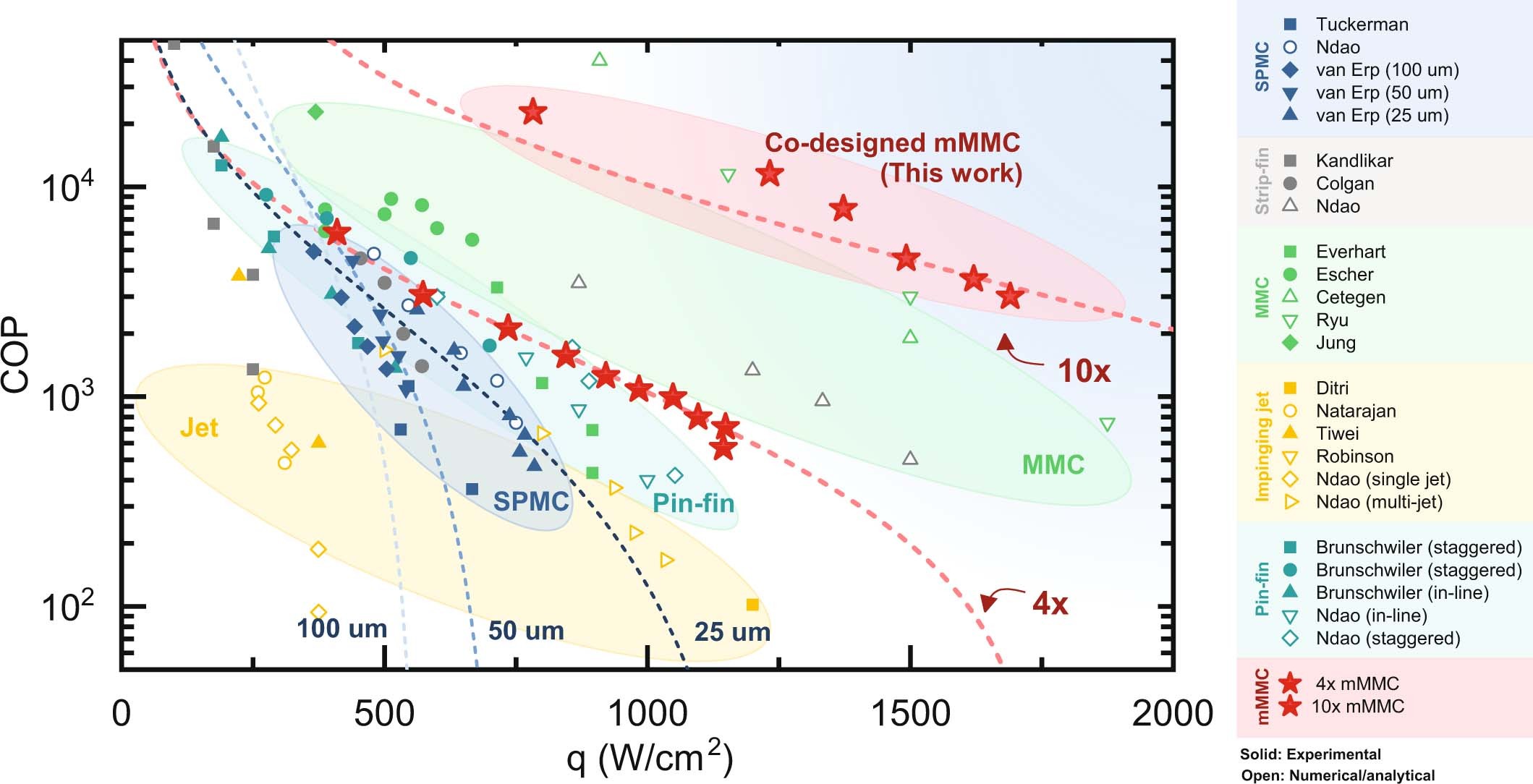

Extended Data Fig. 6: Extensive benchmarking plot of micro-structured cooling approaches in the literature using water as a working fluid.
From: Co-designing electronics with microfluidics for more sustainable cooling
COP versus heat flux for a maximum surface temperature rise of 60 K. Solid markers indicate experimental results and open markers indicate numerical or analytical calculations. The results in this work are indicated by red stars. Dashed lines correspond to predictions based on a constant heat transfer. References 19,29,35,38,61,62,63,64,65,66,68,69,70,71 to all datasets used can be found in Extended Data Table 2, and all the data used are available in the Supplementary Table.
