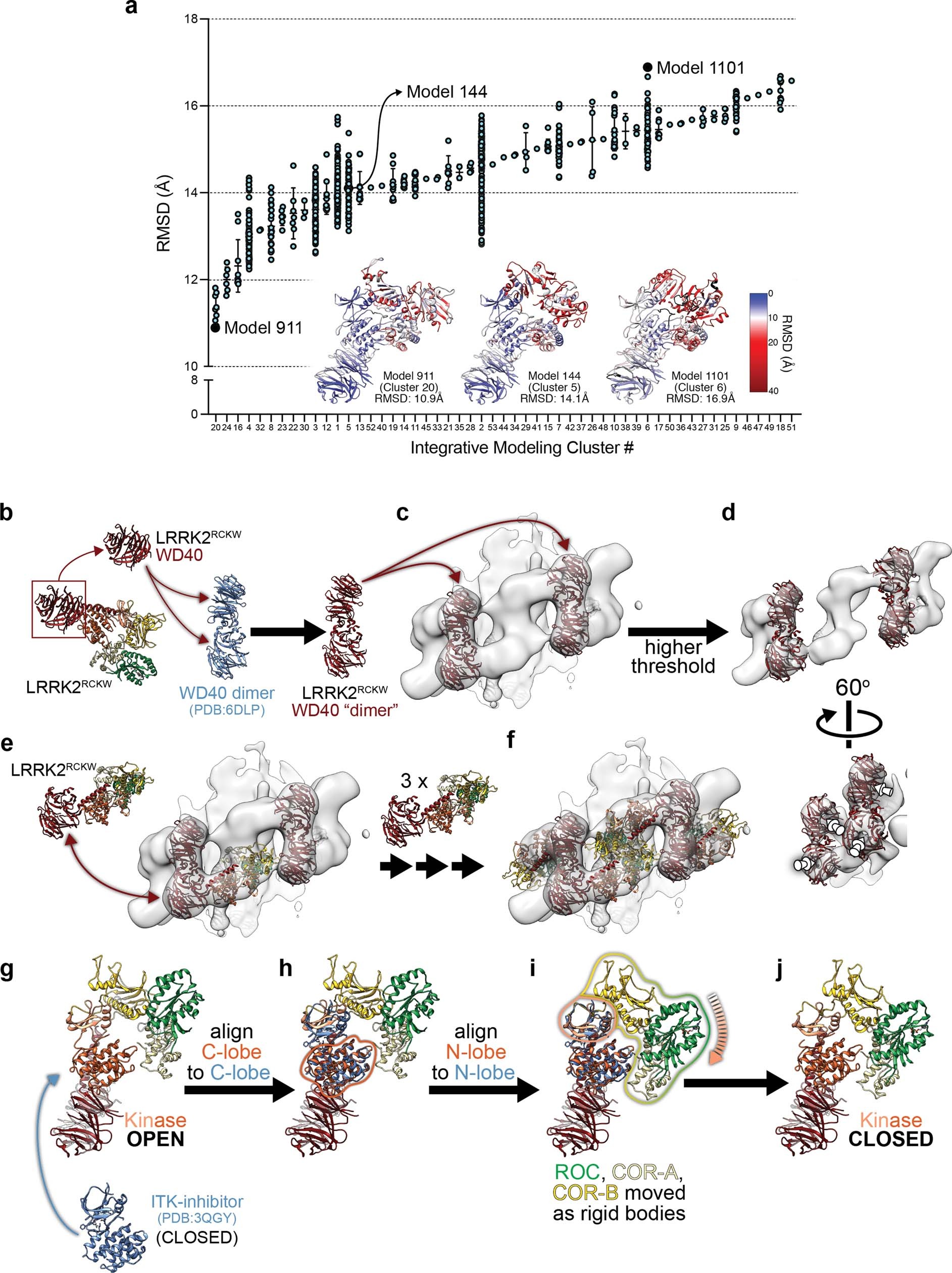

Extended Data Fig. 4: Comparison between LRRK2^RCKW and integrative models built into cryo-ET maps of LRRK2 filaments in cells and docking of LRRK2^RCKW into those maps.
