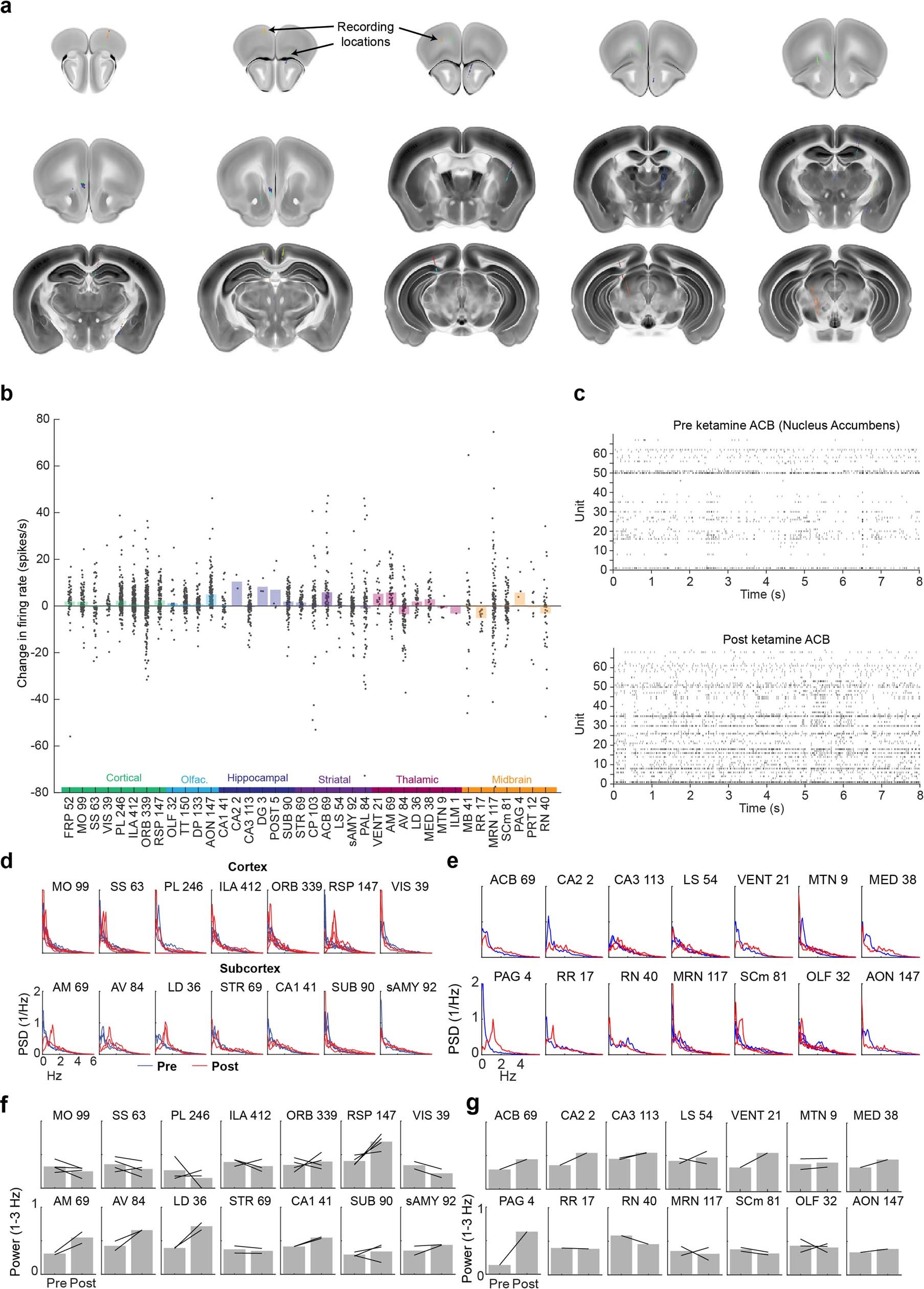

Extended Data Fig. 6: Brain-wide single-cell firing rates and spectral features.
a, Recording locations overlaid on coronal sections from the Allen Mouse Brain Atlas. b, Change in firing rate per brain region between 8–12 min before and 8–12 min after ketamine injection, each grey dot is an individual cell. Cells from all 4 sessions are included. c, Nucleus accumbens spike rasters before (top) and after (bottom) ketamine injection from a single session. d, PSD plots for cortical and subcortical regions in Fig. 2d–f; before (blue) and after (red) ketamine injection. e, PSD plots for additional subcortical regions; before (blue) and after (red) ketamine injection. f, Average regional power in the 1–3Hz band for cortical and subcortical regions from d. Each recording is represented as a single line. The total number of recorded units is indicated. g, Average regional power in the 1–3Hz band for additional subcortical regions from e. Each recording is represented as a single line. The total number of recorded units is indicated.
