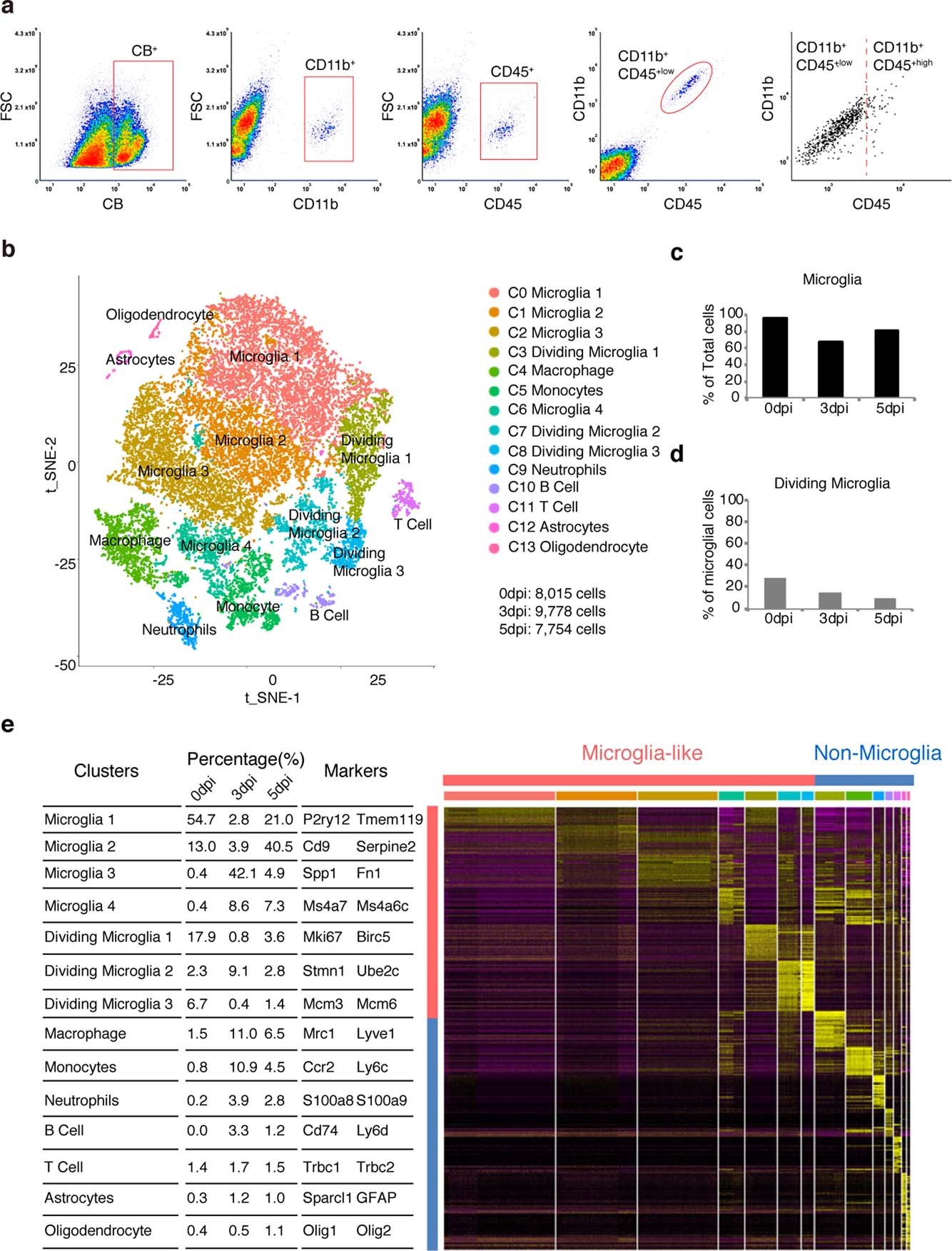

Extended Data Fig. 6: Isolation and scRNA-seq results for immune cells after neonatal spinal cord injury.
From: Microglia-organized scar-free spinal cord repair in neonatal mice
a, FACS plots showing selection of CD11b+ and CD45+ cells from dissociated cells from neonatal spinal cord. b, t-SNE plot showing 14 clusters and population annotations. c, d, Relative proportions of microglia among total cells (c) and dividing microglia among microglia cells (d). e, Left, table showing the percentage of each cluster and their signature genes. Right, heat map depicting the top 30 differentially expressed genes for each of the 14 clusters.
