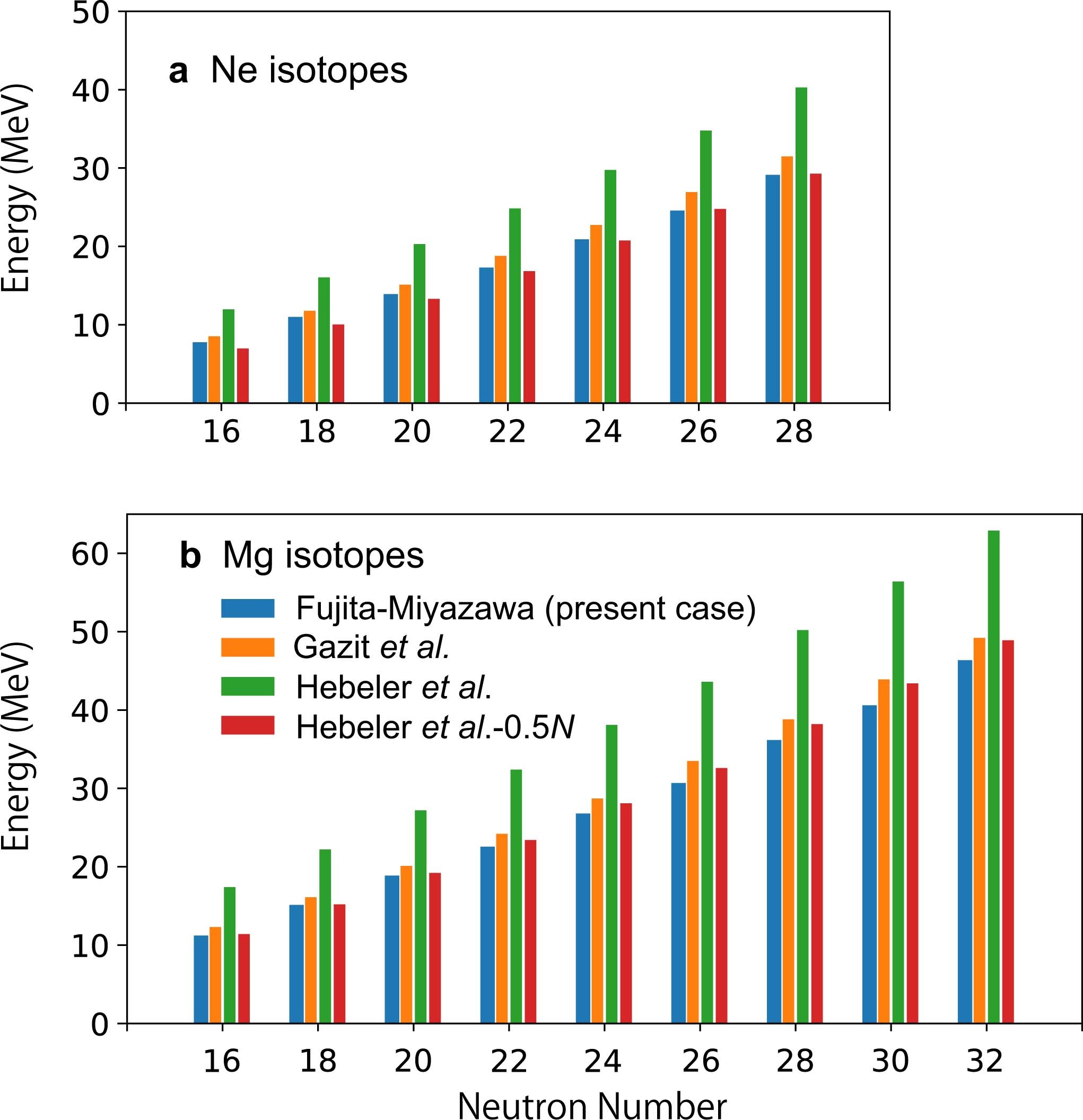

Extended Data Fig. 4: Ground-state expectation value of the 3NF for the Ne and Mg isotopes.
From: The impact of nuclear shape on the emergence of the neutron dripline
a, Ne; b, Mg. For each isotope, the second (orange), third (green) and fourth (red) columns depict, respectively, this quantity obtained with the 3NF of Gazit et al.80, that of Hebeler et al.77 and that of Hebeler et al. with single-particle energy shift (labelled ‘Hebeler et al.−0.5N’) (Methods). For comparison, the same quantity by the Fujita–Miyazawa 3NF is shown by the first (blue) column.
