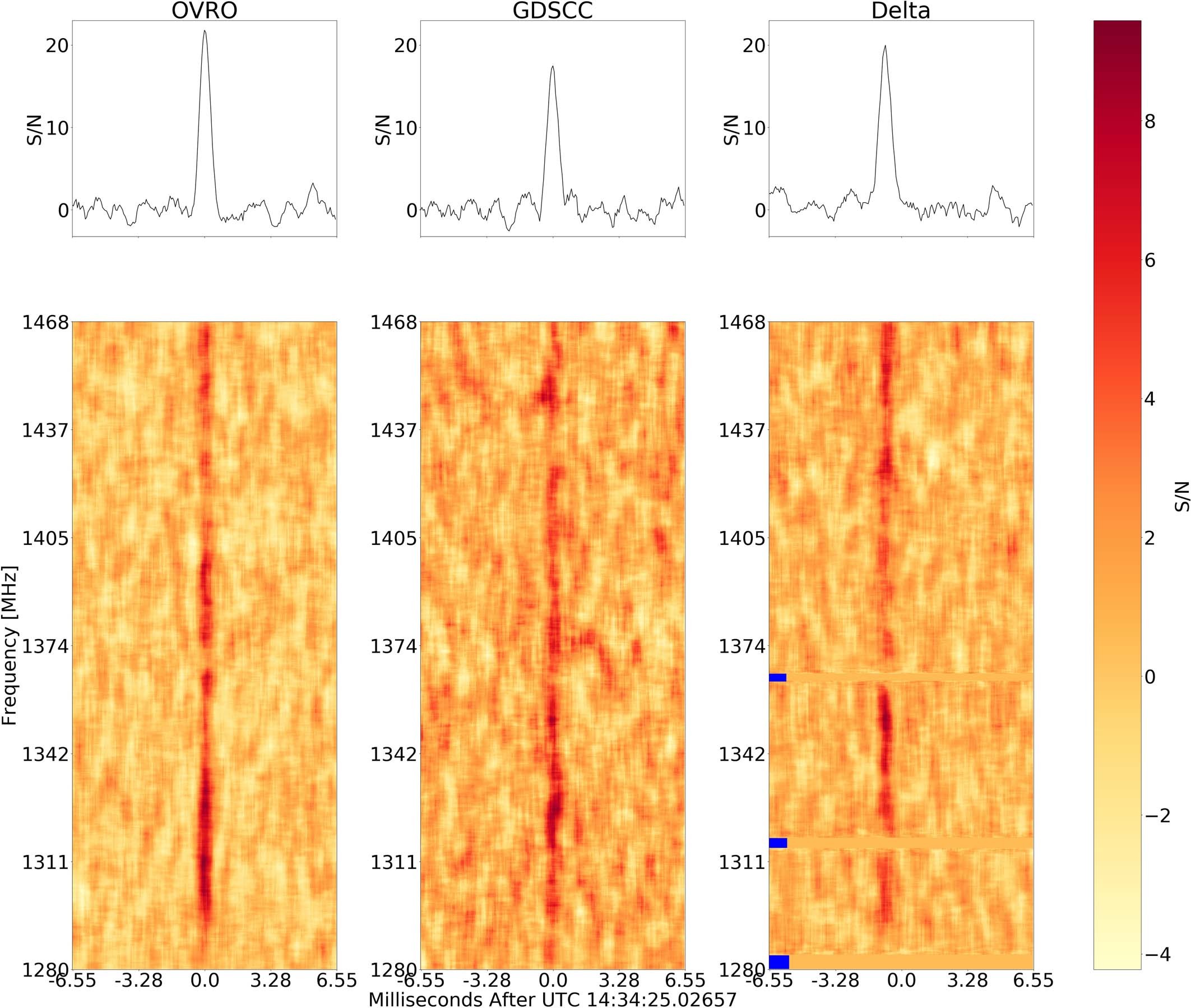

Extended Data Fig. 1: Time series and dynamic spectrum of FRB 200428 at each station.
From: A fast radio burst associated with a Galactic magnetar
Top, time series at each station referenced to the arrival time at OVRO at ν = 1,529.267578 MHz. Bottom, dynamic spectra at each station. The data shown in all panels were processed in the same way as those in Fig. 1. We have not corrected for the spectral response at each station. The blue bars in the Delta dynamic spectrum indicate frequencies affected by radio frequency interference that were excised from the data.
