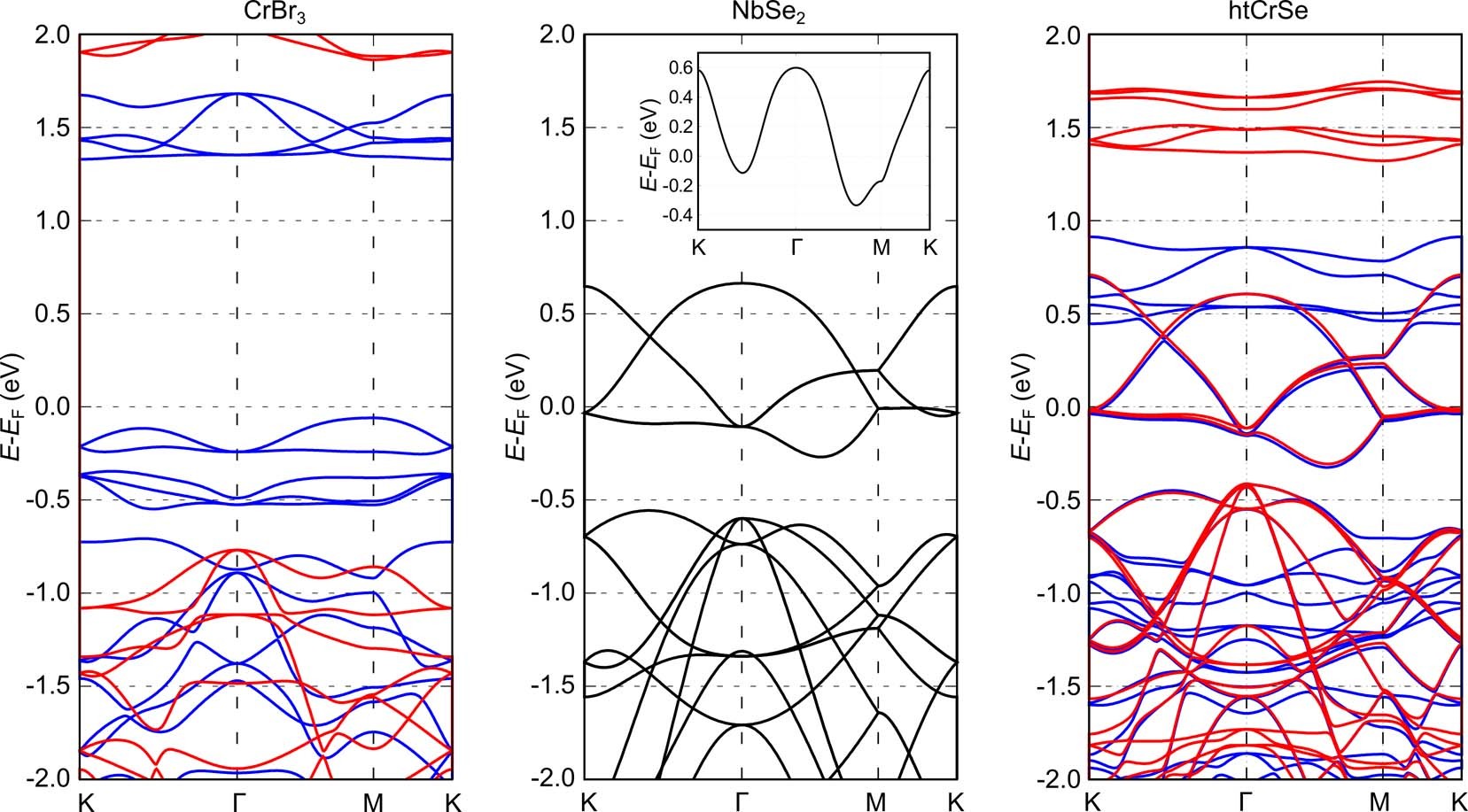

Extended Data Fig. 7: Band structures of the isolated monolayers CrBr3 and NbSe2, as well as the most stable CrBr3–NbSe2 heterostructure, htCrSe.
From: Topological superconductivity in a van der Waals heterostructure
Blue and red lines represent spin up and down, respectively.
