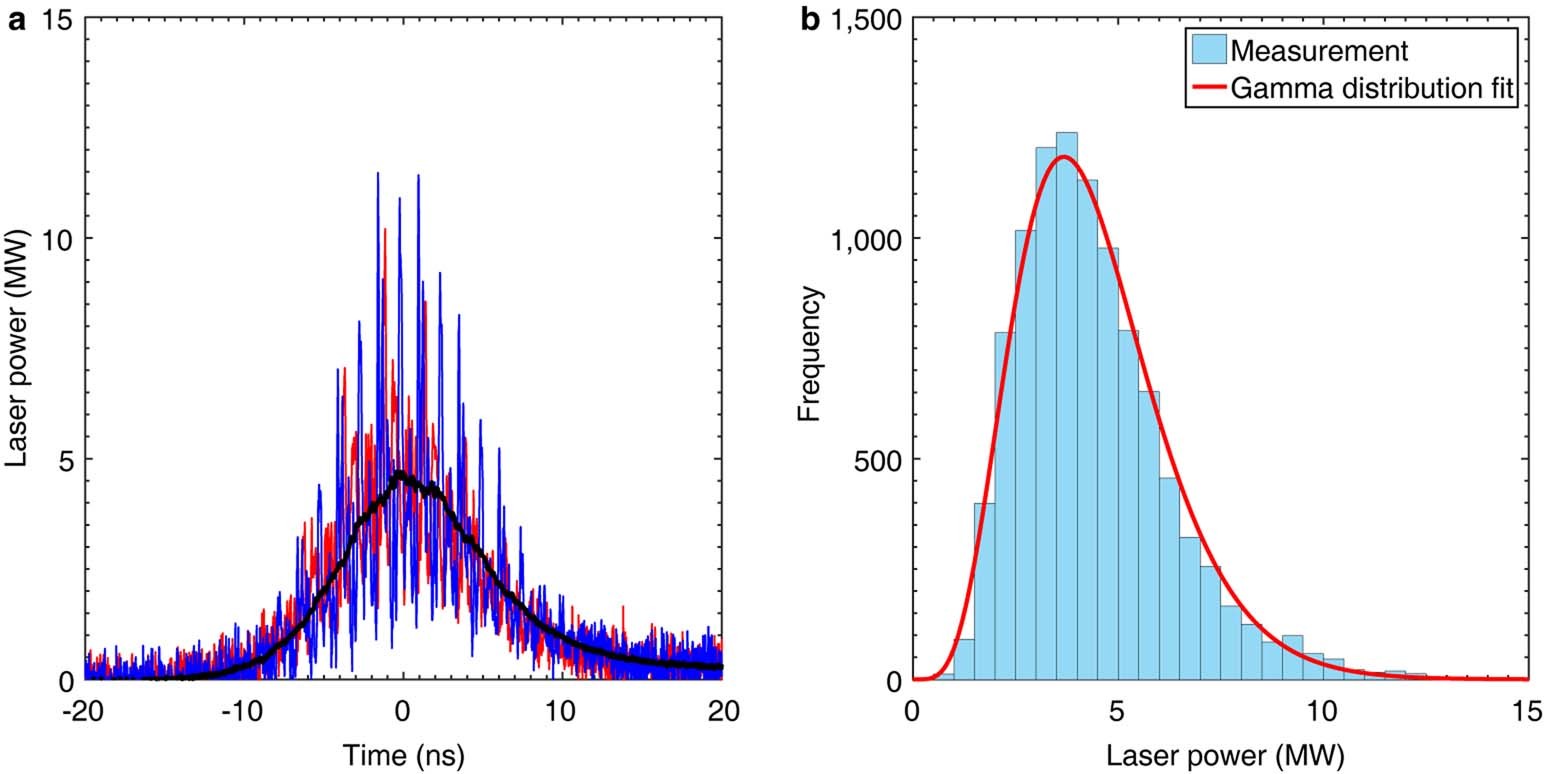

Extended Data Fig. 2: Fluctuating temporal profiles of the multi-longitudinal-mode laser.
From: Experimental demonstration of the mechanism of steady-state microbunching
a, Temporal profiles of two example consecutive laser shots (red and blue) and the averaged waveform of 200 consecutive laser shots (black). b, Statistical distribution of the laser power at t = 0 ns in a for 10,000 consecutive laser shots, where the red curve is a gamma distribution fit. Laser: compact Nd:YAG Q-switched laser (Beamtech Optronics Dawa-200). Detector: ultrafast photodetectors (Alphas UPS-40-UVIR-D; rise time < 40 ps). Measurement system: digital oscilloscope (Teledyne LeCroy WM825Zi-B; bandwidth 25 GHz; sample rate 80 billion samples per second).
