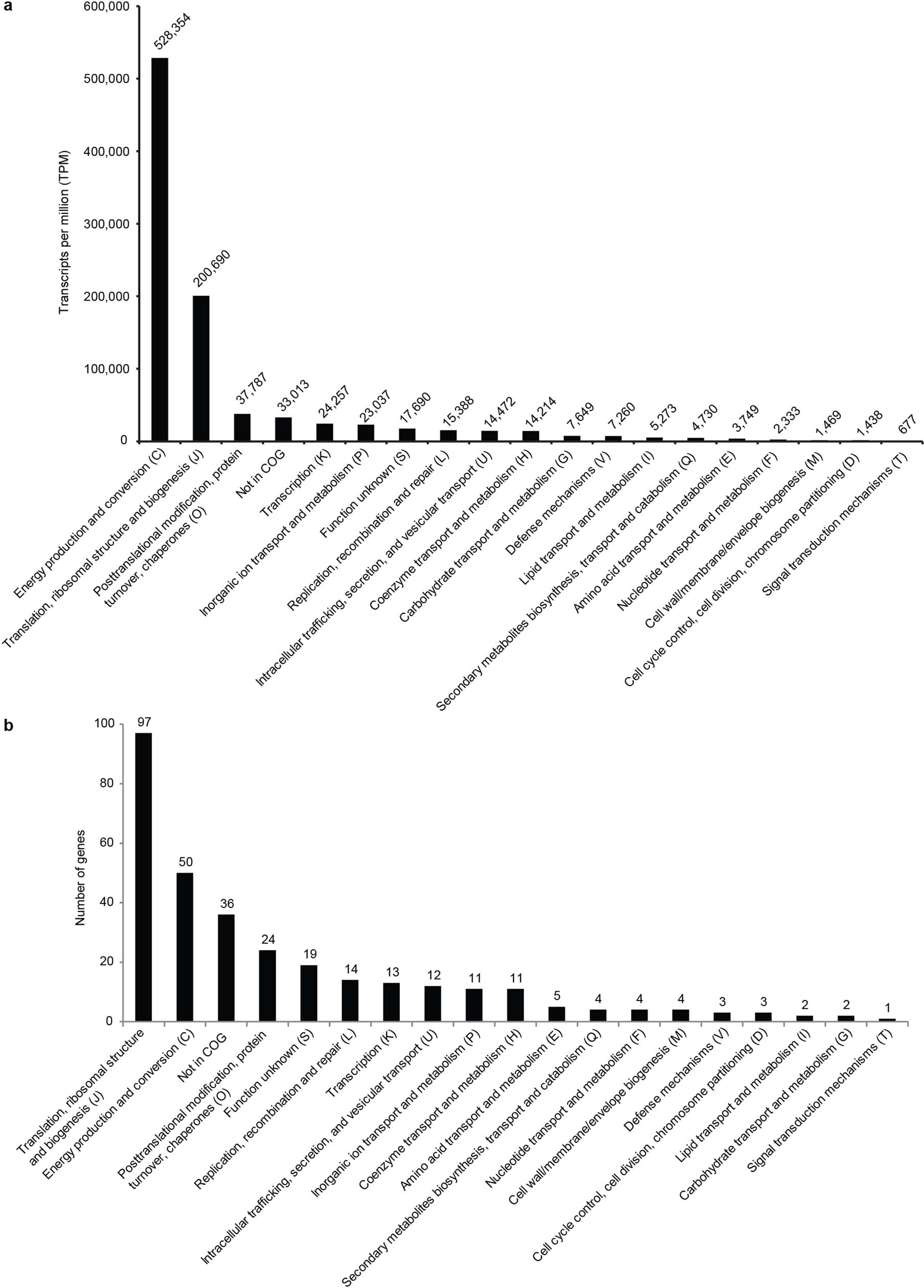

Extended Data Fig. 7: Total gene transcription and number of genes per functional category.
From: Anaerobic endosymbiont generates energy for ciliate host by denitrification
a, Bar chart showing the sum of TPM (indicated above each bar) of ‘Ca. A. ciliaticola’ genes within different functional categories. For the TPM calculation, the Lake Zug bulk water metatranscriptome data (MT_18_C) were used. Genes with several assigned categories were not included in the analysis. b, Bar chart showing the number of genes encoded in the genome of ‘Ca. A. ciliaticola’ assigned to different functional categories on the basis of clusters of orthologous genes analysis. The number of genes within each functional category is indicated above each bar.
