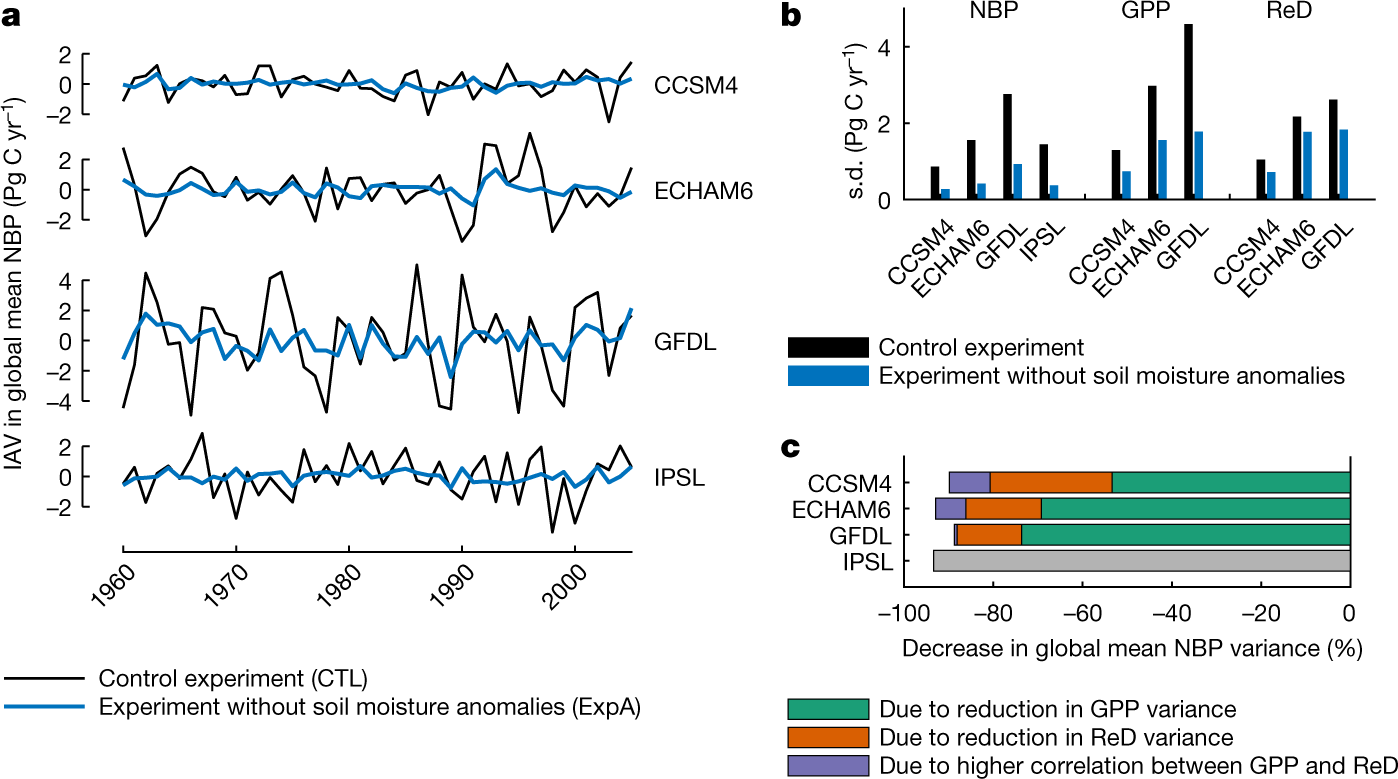

Fig. 1: Carbon fluxes in CTL and experiment A.
From: Soil moisture–atmosphere feedback dominates land carbon uptake variability
a, IAV in global mean NBP (mean-centred and de-trended) as simulated by four ESMs (CCSM4, ECHAM6, GFDL and IPSL) in coupled model experiments with (CTL) and without (experiment A; ExpA) anomalies in soil moisture. Positive NBP indicates carbon uptake. b, Standard deviations of global mean NBP, GPP and respiration and disturbance (ReD) in the two experiments. c, Drivers of change in global mean NBP variance (Supplementary Information section 1). Global mean NBP variance decreases in the experiment with prescribed seasonal soil moisture mainly because GPP variance is reduced. GPP and ReD fluxes are not available for the IPSL model.
