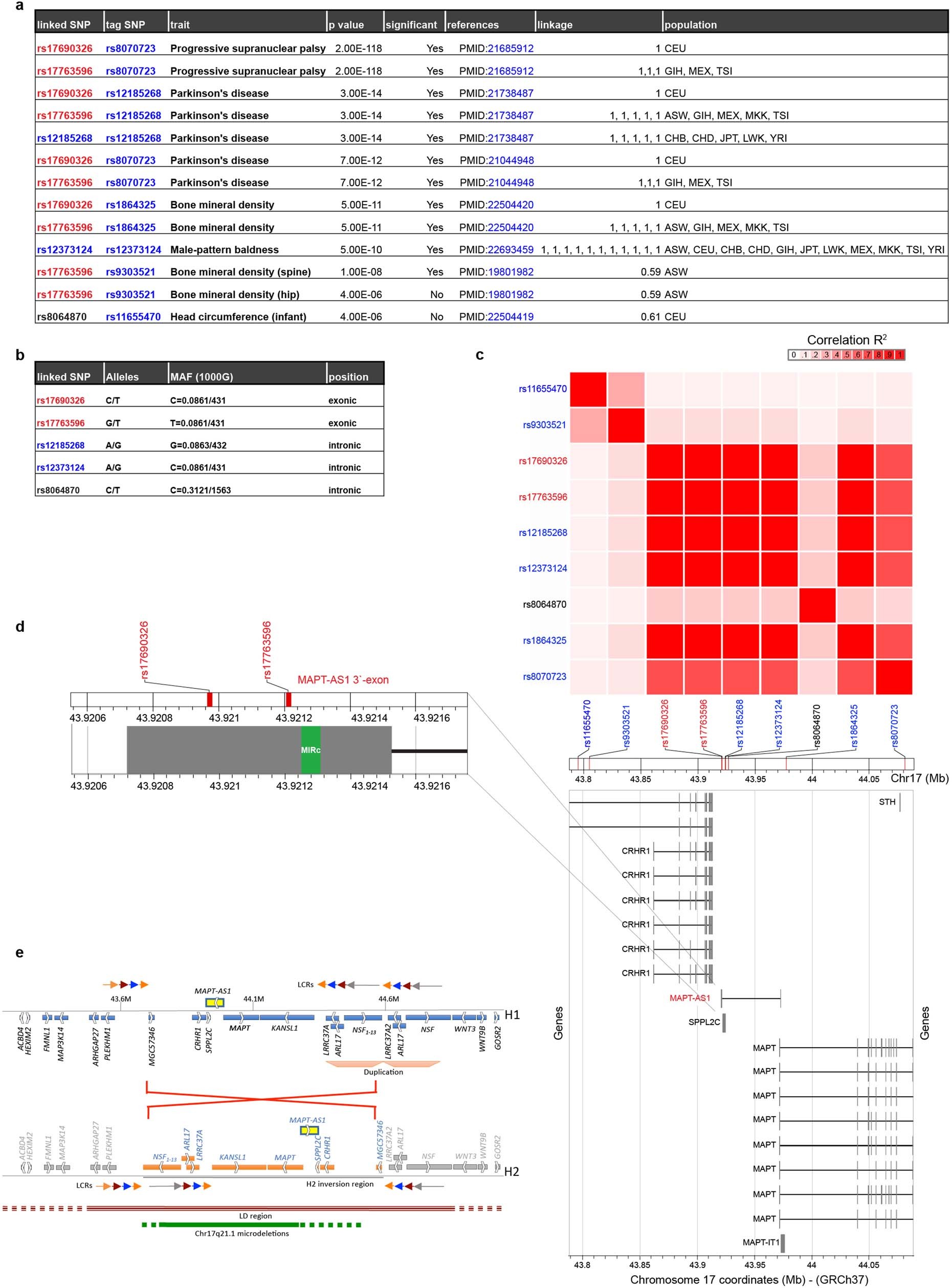

Extended Data Fig. 1: Linkage disequilibrium analysis of MAPT-AS1 region.

a, SNPs within MAPT-AS1 genomic region that are linked (R² ≥ 0.5) to tagging SNPs from the NHGRI GWAS catalogue are reported. The specific trait associated to each tagging SNP together with the p-value from the GWAS study and their cited publications PubMed ID are shown. All p-values ≤ 5x10⁻⁸ were considered to be significant. Linkage disequilibrium (LD) correlations (R²) were calculated using LDlink1.1⁷⁰ for different populations. ASW: Americans of African Ancestry in SW USA; CEU: Utah Residents (CEPH) with Northern and Western European Ancestry; CHB: Han Chinese in Beijing, China; CHD: Chinese in Metropolitan Denver, Colorado; GIH: Gujarati Indians in Houston, Texas; JPT: Japanese in Tokyo, Japan; LWK: Luhya in Webuye, Kenya; MXL: Mexican ancestry in Los Angeles, California; MKK: Maasai in Kinyawa, Kenya; TSI: Toscani in Italy; YRI: Yoruba in Ibadan, Nigeria. b, For each linked SNP listed in a, the minor allele frequency (MAF) from the 1000 Genomes Project is given, together with the exon/intron location. c, Pairwise linkage disequilibrium heat map created using LDmatrix (https://ldlink.nci.nih.gov/?tab=ldmatrix). Red squares of increasing hue indicate increasing linkage disequilibrium correlation between SNPs. A physical map of the genomic region is reported together with annotated RefSeq transcripts for each gene. d, Enlarged view of the MAPT-AS1 3′-exon (in grey) containing the inverted MIRc element (in green), with two exonic linked SNPs downstream (rs17690326, rs17763596). e, Detailed scheme of the H1/H2 inversion haplotypes (hg19). All major annotated genes in the linkage disequilibrium (LD) region are coloured in blue for the H1 haplotype, and in orange for the H2 inversion haplotype, with a white arrow representing their relative orientation. Arrays of Low Copy Repeats (LCRs), delimiting the inversion region, are represented by tandem arrows. MAPT-AS1 gene is coloured in yellow.
