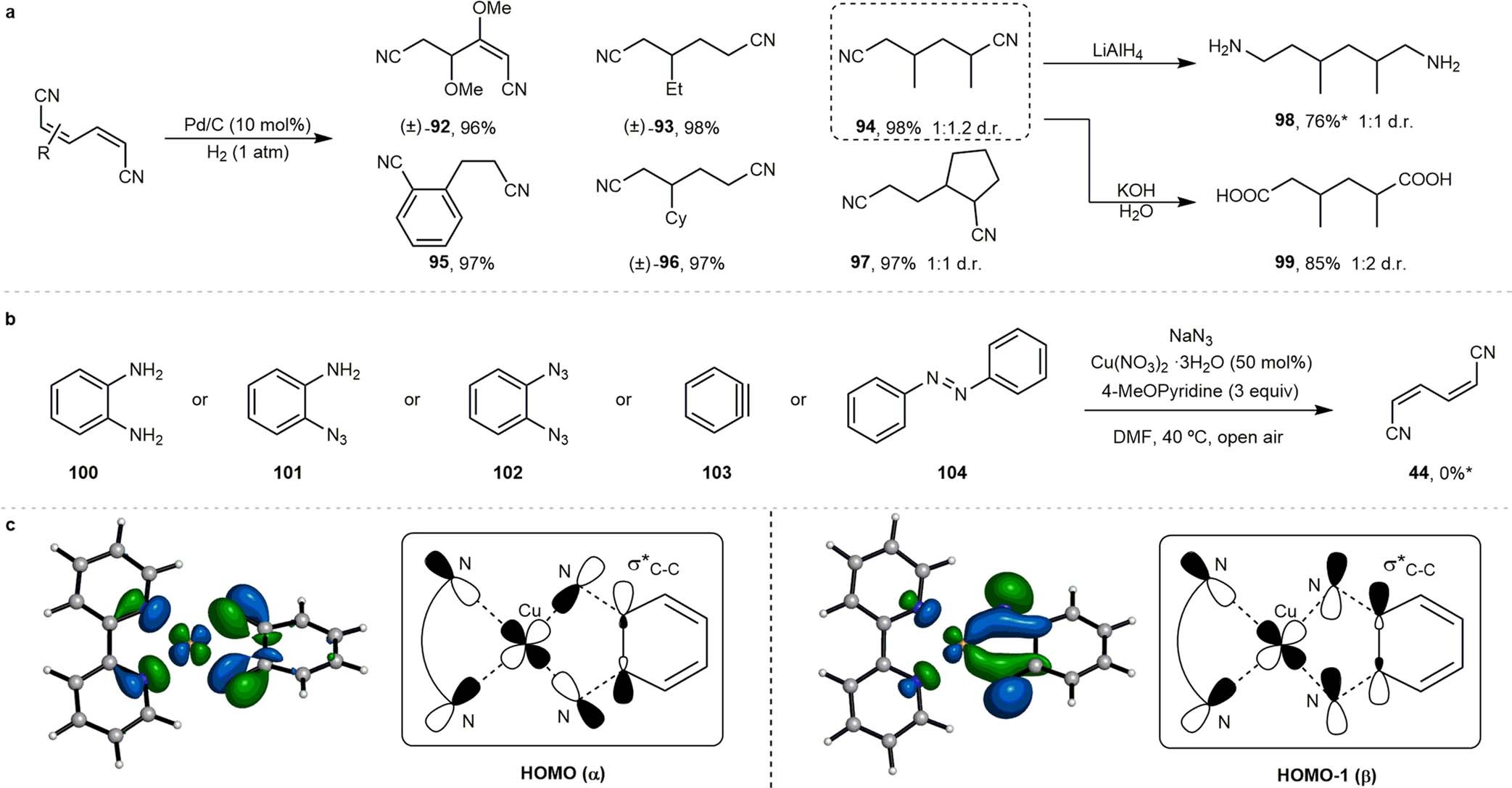

Extended Data Fig. 1: Downstream transformations and mechanism studies.
From: Cleaving arene rings for acyclic alkenylnitrile synthesis
a, Downstream transformations of alkenyl nitriles. b, The excluded intermediates. c, HOMO(α) and HOMO-1(β) of the triplet copper bis-nitrene intermediate. *See Supplementary Information for experimental details.
