Extended Data Fig. 8: Thermal stability comparison between filaments of G. sulfurreducens PilA-N–C with P. aeruginosa T4P.

From: Structure of Geobacter pili reveals secretory rather than nanowire behaviour

Extended Data Fig. 8

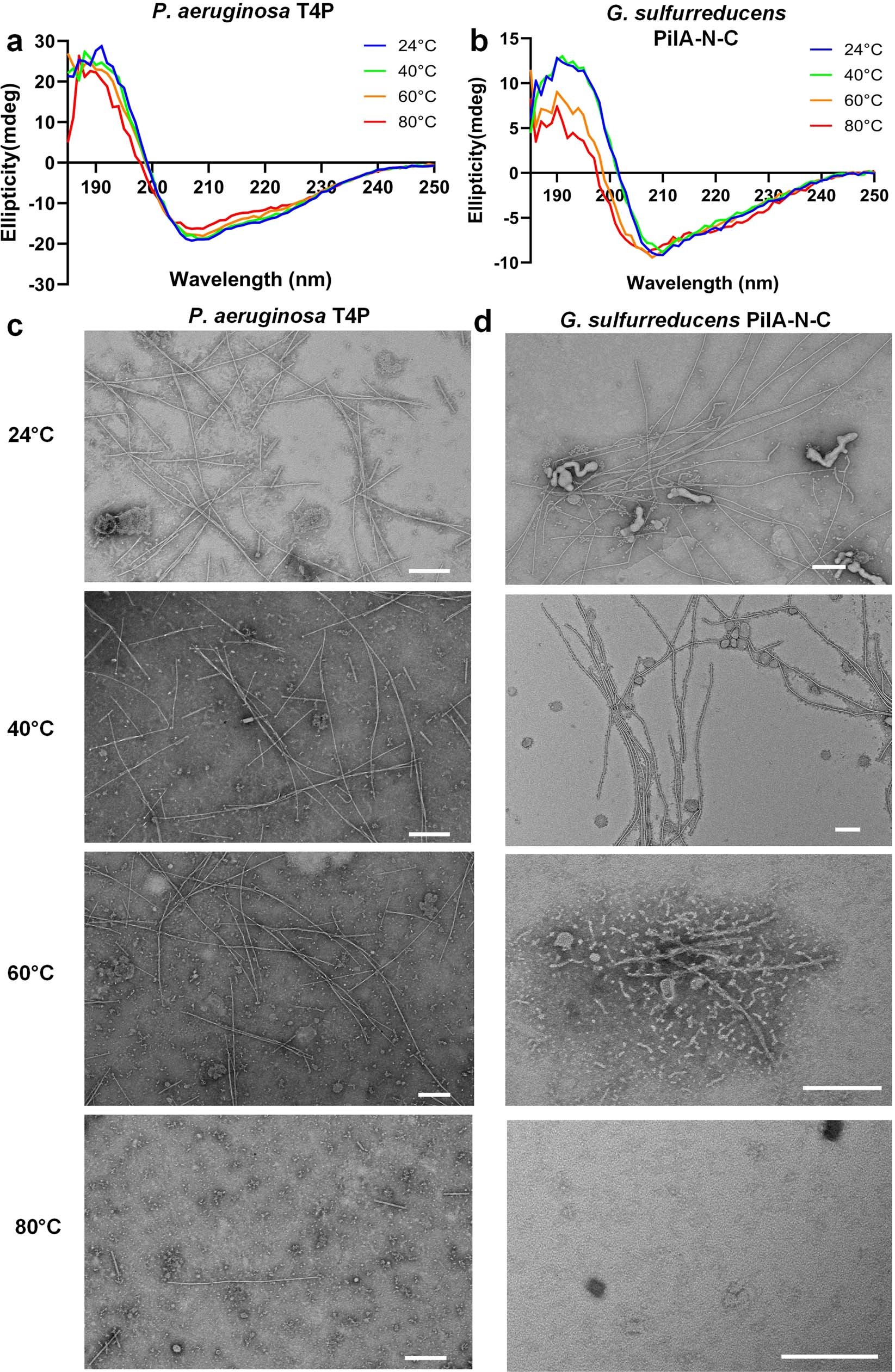

a, b, Circular dichroism spectra for P. aeruginosa T4P (a) and G. sulfurreducens PilA-N–C filaments (b) showing thermal denaturation. c, d, TEM images of P. aeruginosa T4P (c) and G. sulfurreducens PilA-N–C filaments (d) treated at the temperatures indicated for 5 min. Scale bars, 200 nm.
