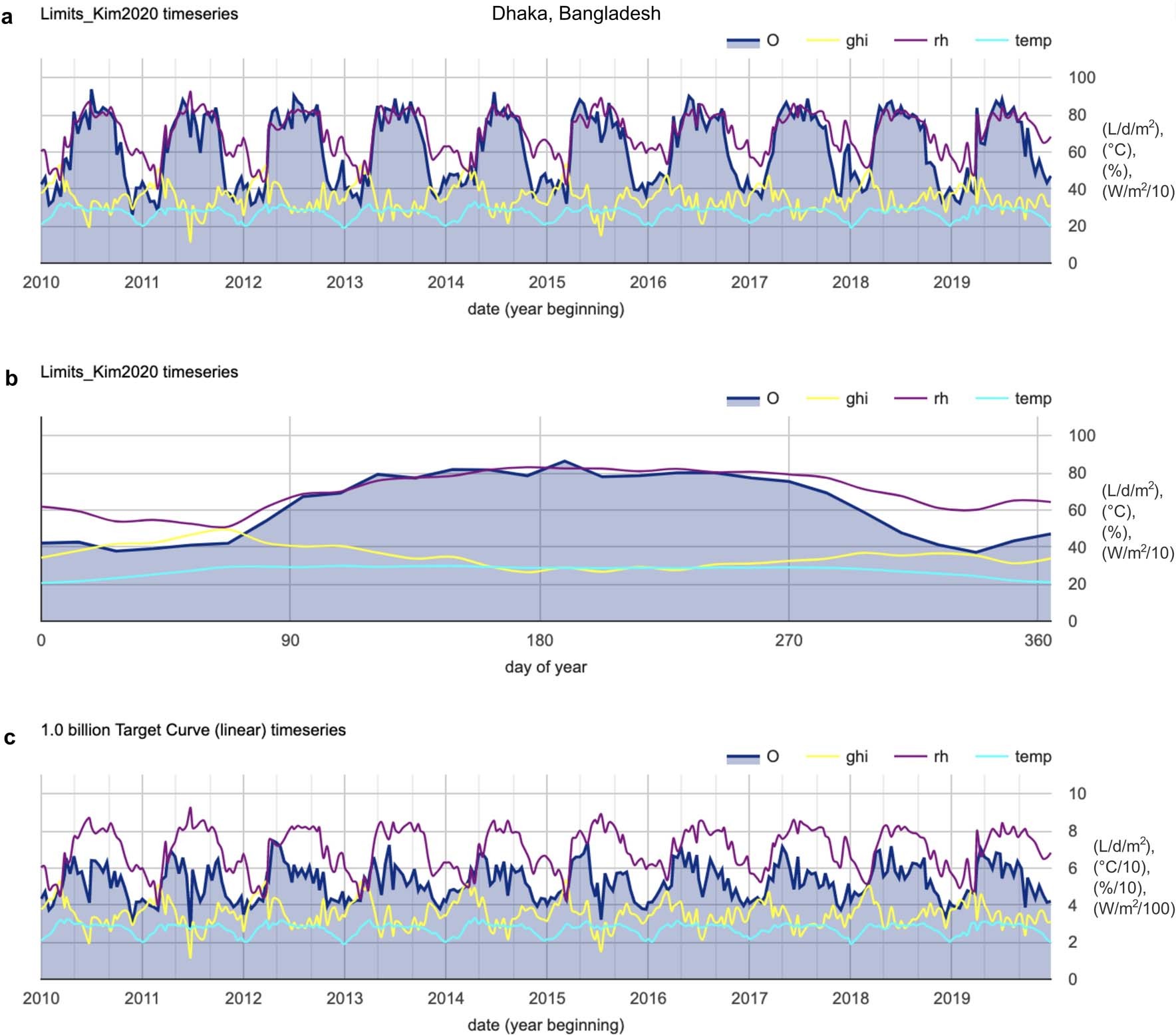

Extended Data Fig. 7: Bi-weekly timeseries of AWH output and climate drivers for tropical savanna profile in Dhaka, Bangladesh.
From: Global potential for harvesting drinking water from air using solar energy
Bi-weekly mean output (L/d/m2), and climate inputs global horizontal irradiance (GHI, plotted from 0–1000 W/m2), relative humidity (rH, plotted from 0–100 %), and temperature (plotted from 0–100 °C) of (a) AWH thermodynamic upper bounds (Kim 2020) during ten year 2010–2019 (inclusive) analysis period for each bi-weekly interval and (b) averaged by bi-weekly period annually during this period, and (c) for the 1 billion user linear target curve for each bi-weekly interval. Example of a seasonal wet-dry tropical savanna climate with pronounced semi-annual fluctuations of AWH output driven by rH.
