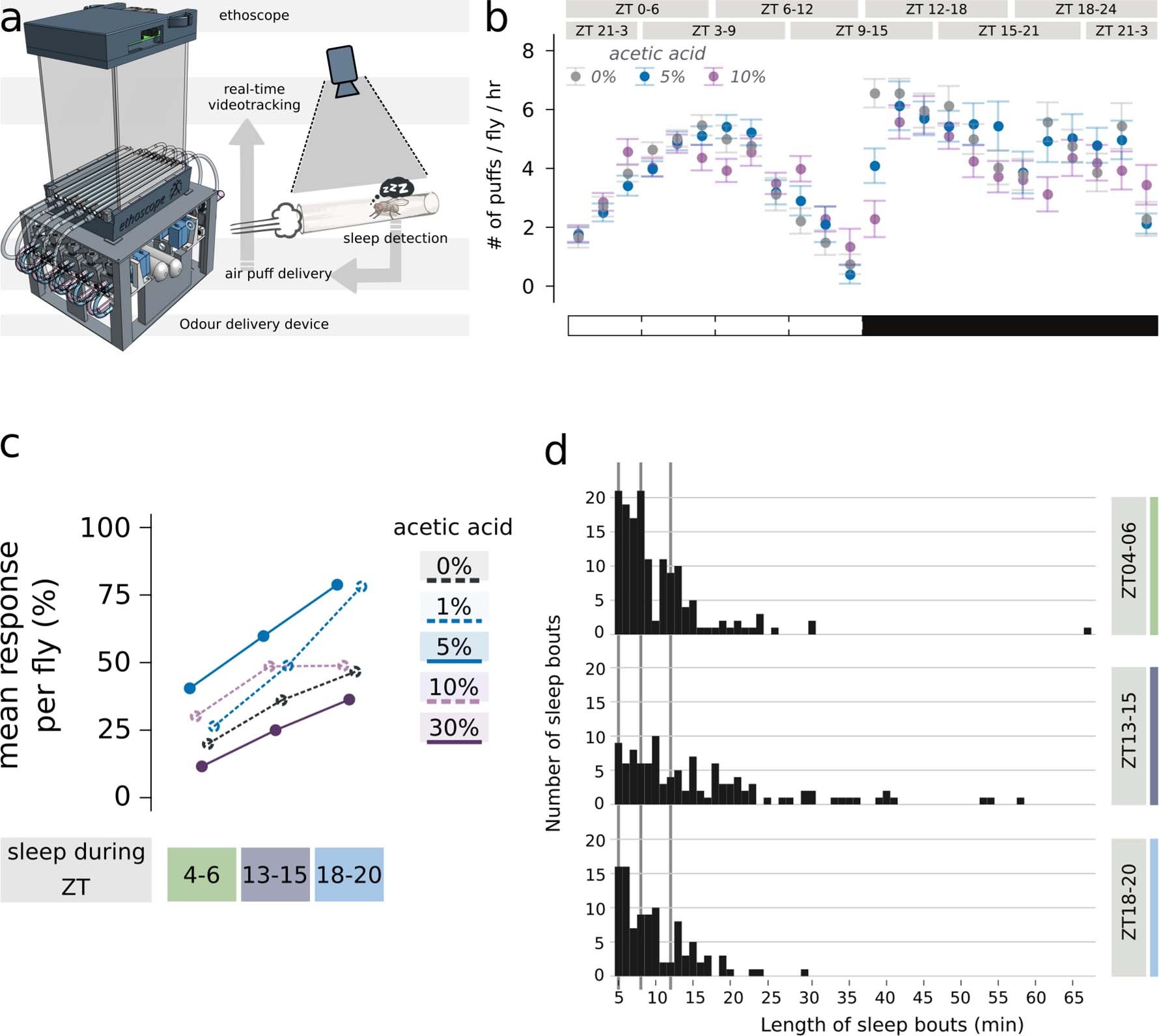

Extended Data Fig. 1: Occurrence and length of sleep bouts vary during the day.
From: Sensory processing during sleep in Drosophila melanogaster
a, Schematics of the experimental setup. b, Average numbers of puffs per fly per hour in three conditions (0%; 5%; 10% acetic acid. Ns 106, 105, 103 respectively). The top grey bars show how experiments were conducted at eight independent, overlapping intervals. c, Mean response per fly at different time point during the day, grouped by concentration of acetic acid. Same dataset as in Fig. 1d. d, Total distribution of sleep bouts by length, binned at 1-minute intervals during three time points representing different types of sleep (ZT 4-6, ZT 13-15 and ZT18-20). The three grey vertical lines indicate the bins for 5-, 8-, and 12-minutes sleep respectively as chosen for the analysis in Fig. 1c–e. In all panels, errors are shown as bootstrapped 95% CI.
