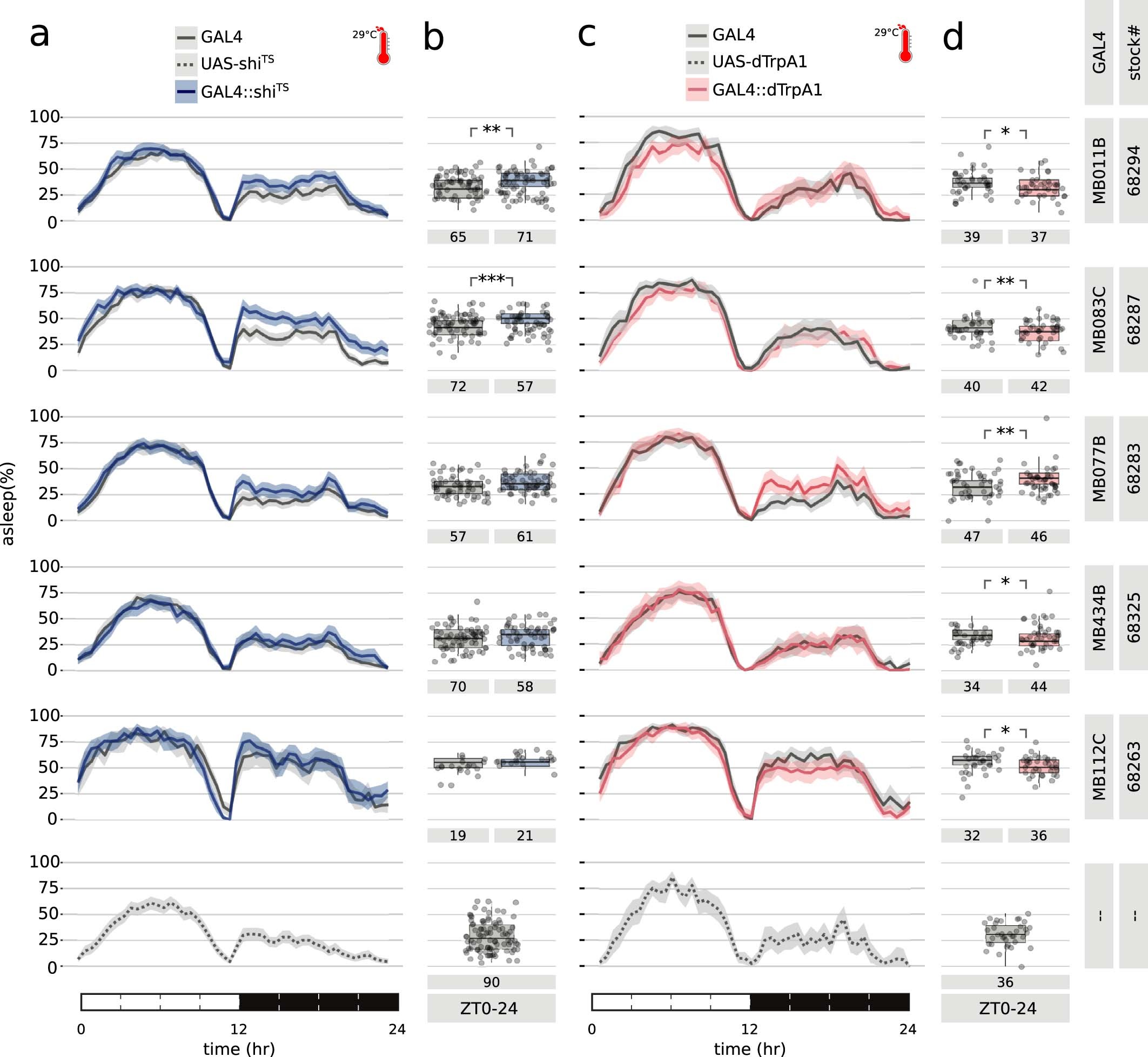

Extended Data Fig. 4: Activation or inhibition of some MBONs modulates sleep.
From: Sensory processing during sleep in Drosophila melanogaster
a, b, 24h sleep profiles (a) and mean sleep amount (b) exhibited by flies with inhibited MBON neurons (MBON/ShiTS: blue) or those carrying only the MBON-GAL4 (MBON-GAL4/+: grey solid) or only UAS-ShiTS (UAS-ShiTS /+: grey hashed) transgene over a 24hr baseline day. Ns underneath indicate the number of individual flies and refer to b and a. c, d, 24hr sleep profiles (c) and mean sleep amount (d) exhibited by flies with activated MBON neurons (MBON/dTRPA1:red) or those carrying only the MBON-GAL4 (MBON-GAL4/+: grey solid) or only UAS-dTRPA1 (UAS-dTRPA1: grey hashed) transgene over a 24hr baseline day. Ns underneath indicate the number of individual flies and refer to c, d. In all panels, errors are shown as bootstrapped 95% CI.
