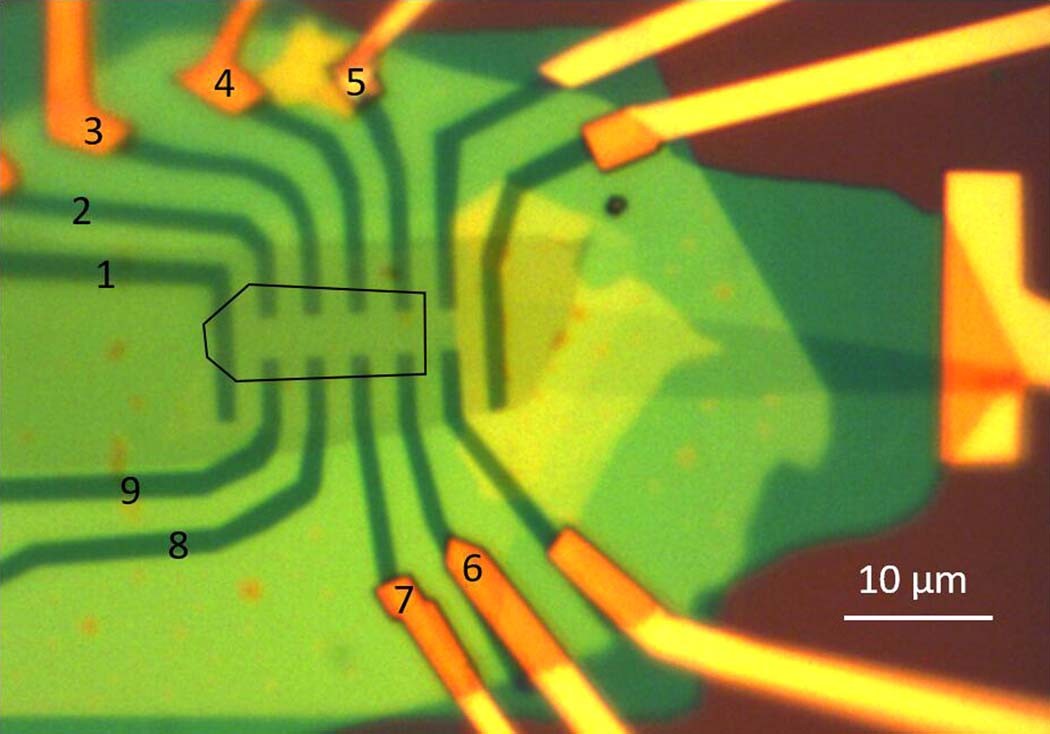

Extended Data Figure 1: Optical micrograph of device 1.
From: Quantum anomalous Hall effect from intertwined moiré bands
MoTe2/WSe2 heterobilayer is outlined by the black line. Electrode 1-9 are labeled. For the results presented in the main text, electrode 5 and 6 are grounded; electrode 1 is used as a source electrode. The longitudinal voltage drop is measured between 3 and 4; and the transverse voltage drop is measured between 3 and 8. The scale bar is 10 μm.
