Extended Data Fig. 6: Statistical image analysis of the high-S/N kernel-filtered DPC(x, y) images.
From: Real-space visualization of intrinsic magnetic fields of an antiferromagnet

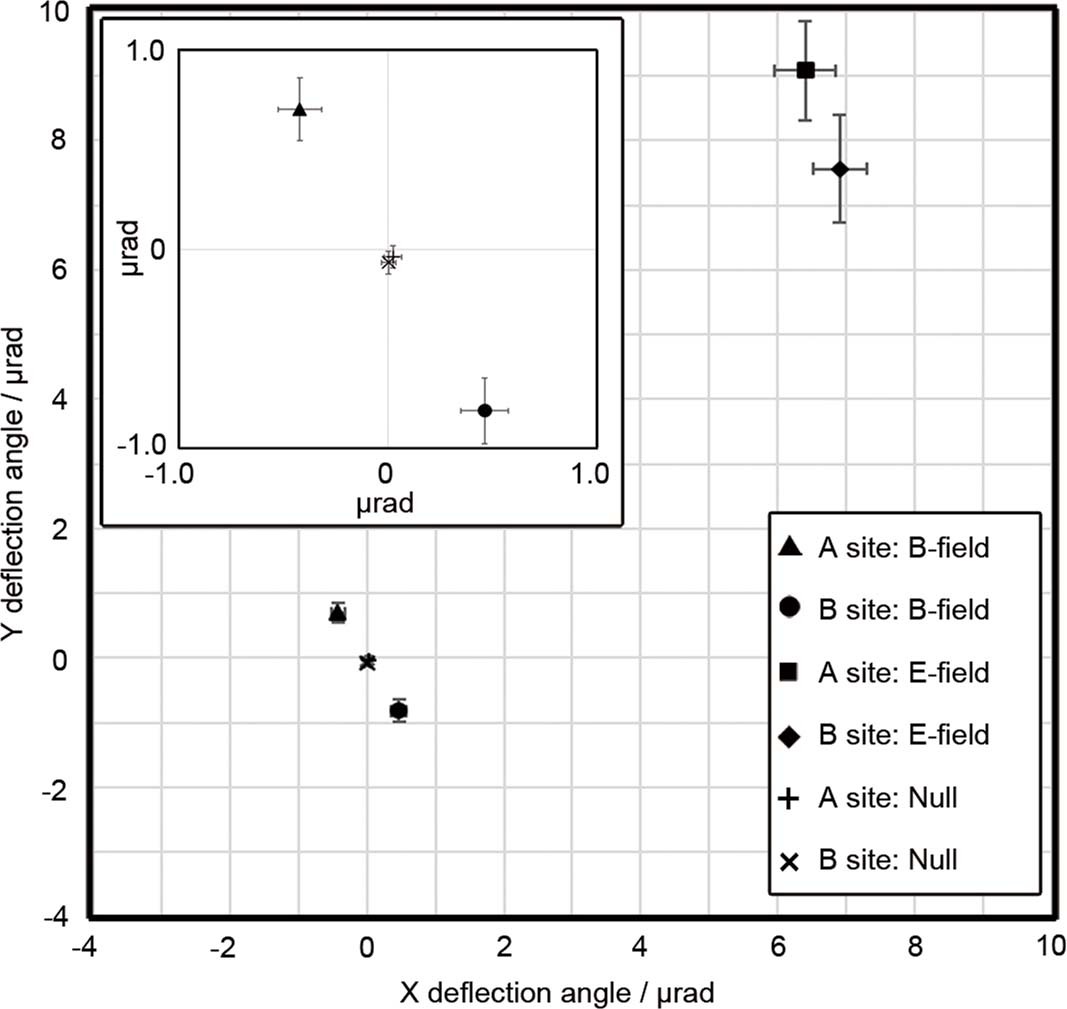

Plot of the averages and the standard errors of the A-site and B-site averaged beam-deflection angles for B-field, E-field and null-filtered high-S/N DPC images. The standard errors are shown as the error bars. The inset shows a magnified portion of the plot around (0, 0).
