Extended Data Fig. 9: Simulated magnetic phase-shift images (infinite dose case) by systematically changing the out-of-plane component (in angle) of the spin direction from the (0001) basal plane.
From: Real-space visualization of intrinsic magnetic fields of an antiferromagnet

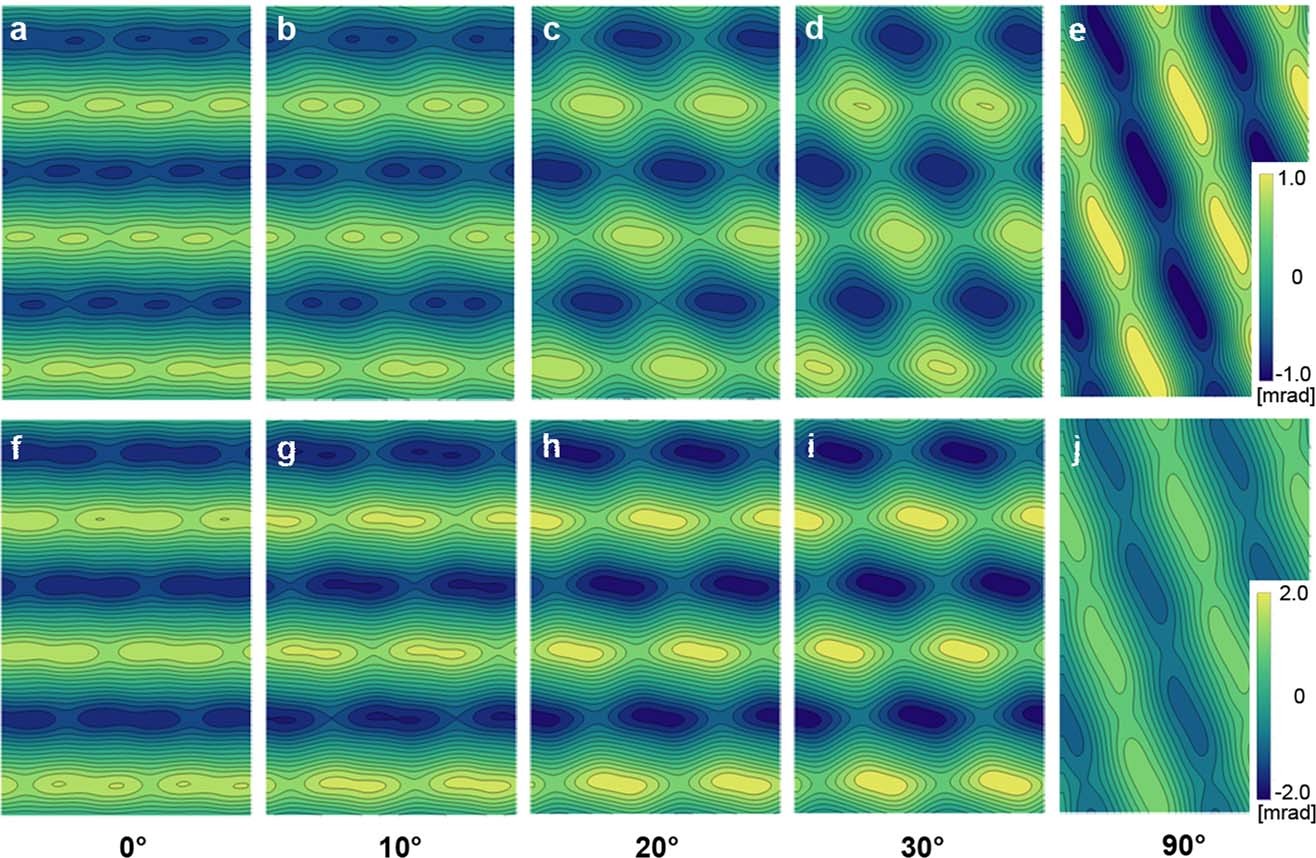

a–e, The out-of-plane components are 0° (a), 10° (b), 20° (c), 30° (d) and 90° (e), for the antiferromagnetic domain shown in Extended Data Fig. 8b. It is seen that the magnetic phase-shift images sensitively change depending on the out-of-plane components of the spin direction. f–j, The out-of-plane components are 0° (f), 10° (g), 20° (h), 30° (i) and 90° (j), for the antiferromagnetic domain shown in Extended Data Fig. 8a. The best match with the experimental phase-shift image shown in Fig. 3 is c.
