Extended Data Fig. 6: Filtered/unfiltered plan-view DF-TEM.

From: Ferroelectric incommensurate spin crystals

Extended Data Fig. 6

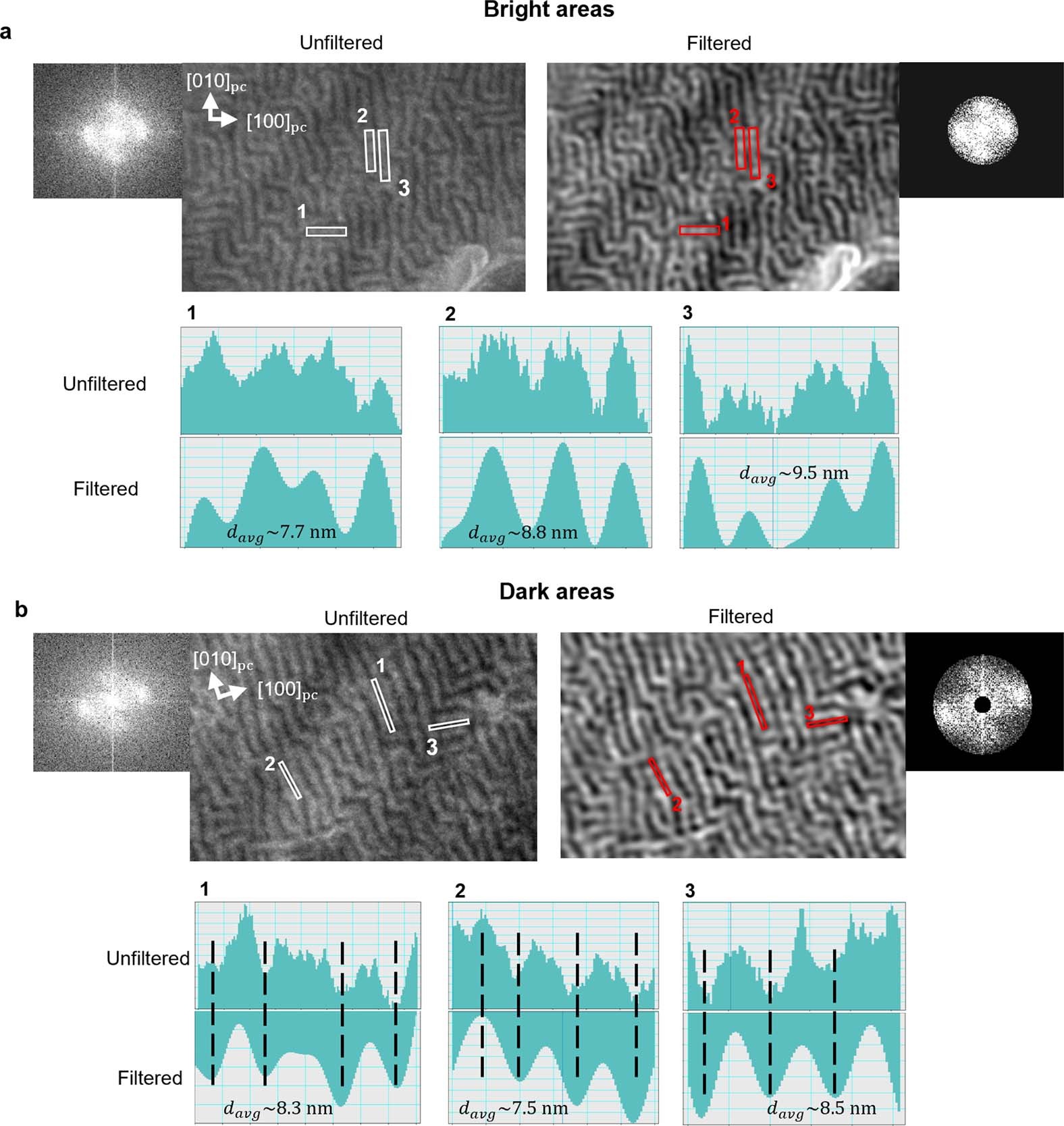

a, The bandpass filter improves the signal-to-noise ratio without introducing artefacts. Both the filtered and unfiltered images show, apart from the labyrinth pattern, a periodic modulation in the contrast along the individual domains. b, The second modulation permeates the labyrinth pattern.
