Extended Data Fig. 3: Anisotropic magnetic response across charge order temperature in the single crystalline sample of KV3Sb5.

From: Time-reversal symmetry-breaking charge order in a kagome superconductor

Extended Data Fig. 3: Anisotropic magnetic response across charge order temperature in the single crystalline sample of KV3Sb5.

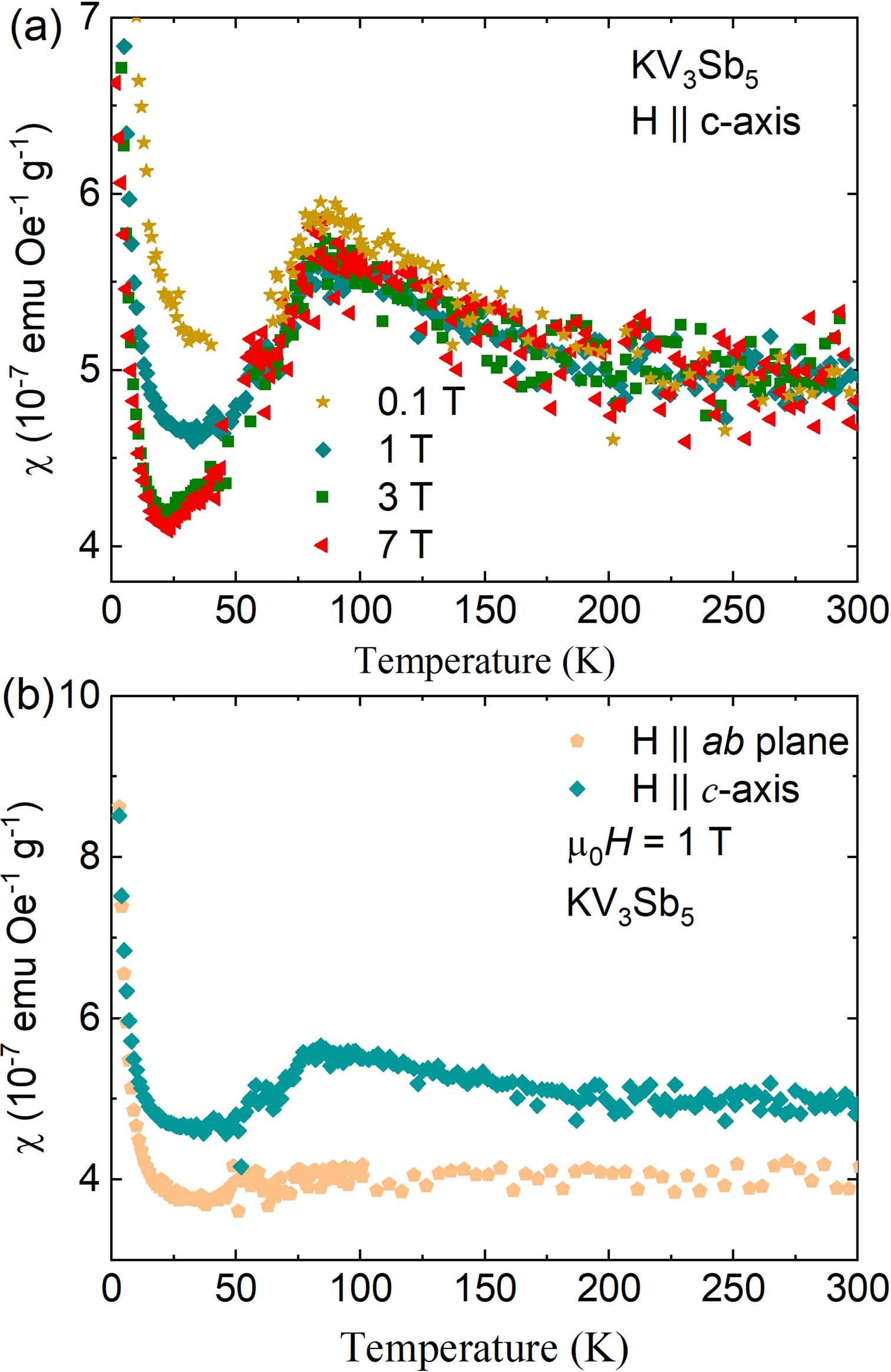

(a) The temperature dependence of magnetic susceptibility for KV3Sb5 measured at various magnetic fields applied parallel to the c-axis. (b) The temperature dependence of magnetic susceptibility for KV3Sb5 measured in the field of 1 T, applied both parallel to the kagome plane and parallel to the c-axis.
