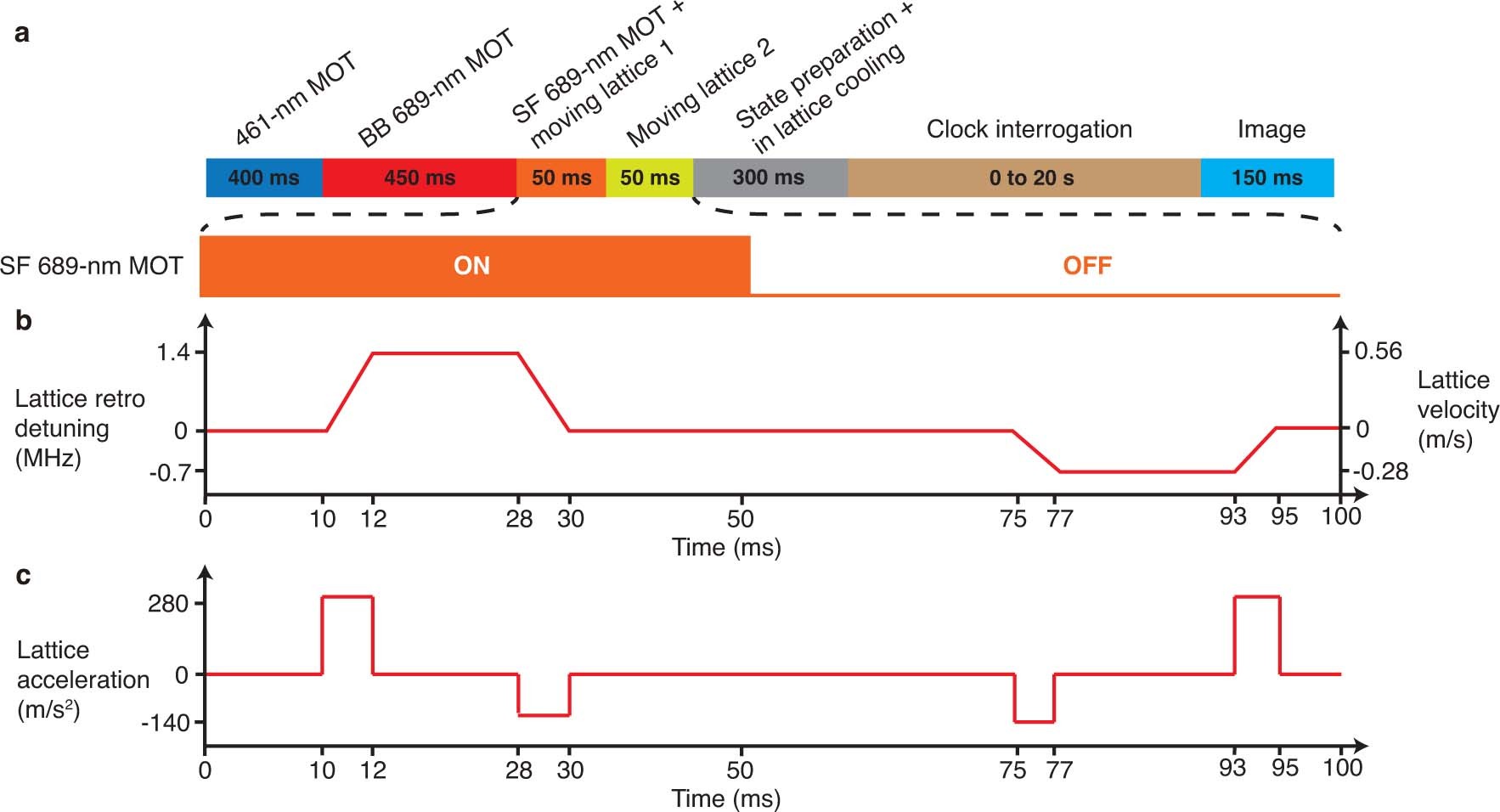

Extended Data Fig. 3: Timing diagram.
From: Differential clock comparisons with a multiplexed optical lattice clock
a, Typical timing diagram for a Ramsey spectroscopy sequence, in which laser cooling, state preparation and camera imaging contribute to about 1.6 s dead time, with clock interrogation time ranging from 10 ms to 20 s. b, c, The corresponding lattice retro detuning, lattice velocity and lattice acceleration for loading two ensembles at 1 cm separation.
