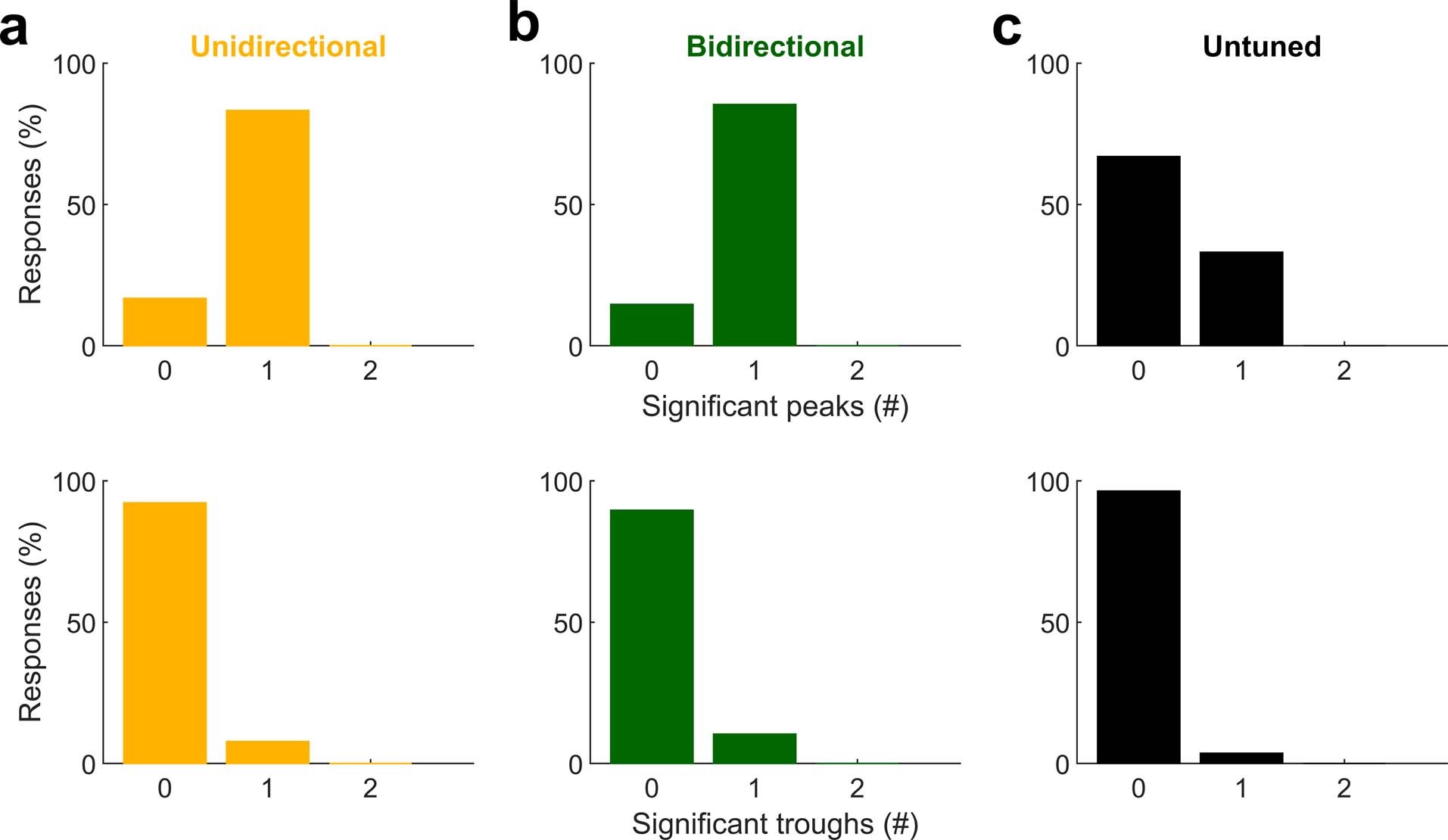

Extended Data Fig. 2: Unimodality of aVEVS.

Majority of (a) uni-directional as well as (b) bi-directional tuning curves were unimodal with only one significant peak (top row), whereas (c) untuned responses did not have significant peaks, as expected. Both tuned responses were used for the bi-directional cells, and only the tuned response was used for the uni-directional cells. Significant troughs, i.e. off-responses were not found for unidirectional or bidirectional cells (bottom row). Significance of a peak (or trough) was determined with the spike train shuffling analysis, similar to that performed to compute the z-scored sparsity. A peak (trough) was determined to be significant if it was larger (smaller) than the median value of peaks (troughs) in all shuffles and had a height of at least 20% of the range of firing rate variation in the shuffle data. These criteria resulted in zero significant peaks for some tuned responses.
