Extended Data Fig. 7: Chemical equilibrium of Si and Fe.
From: UV absorption by silicate cloud precursors in ultra-hot Jupiter WASP-178b

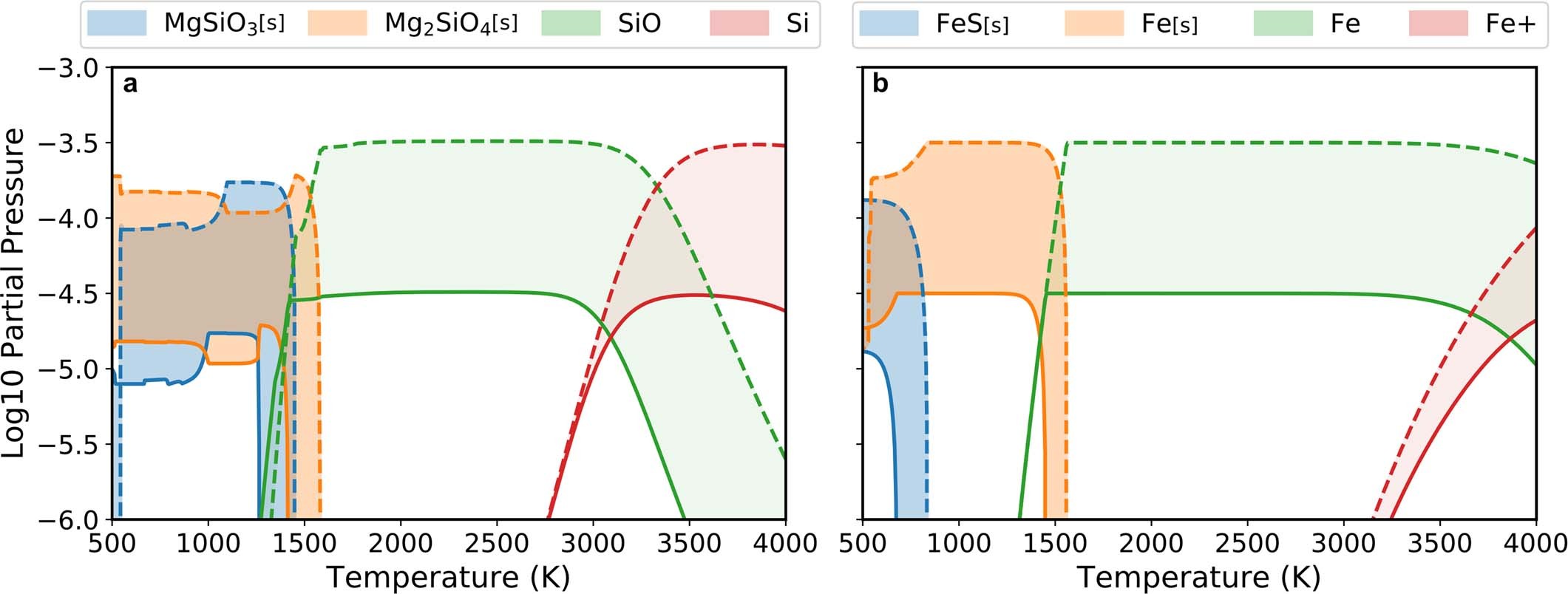

Partial pressures of important silicon- bearing species (a) and iron-bearing species (b) at 1 mbar as a function of temperature. Equilibrium chemical abundances were calculated using GGchem69.
