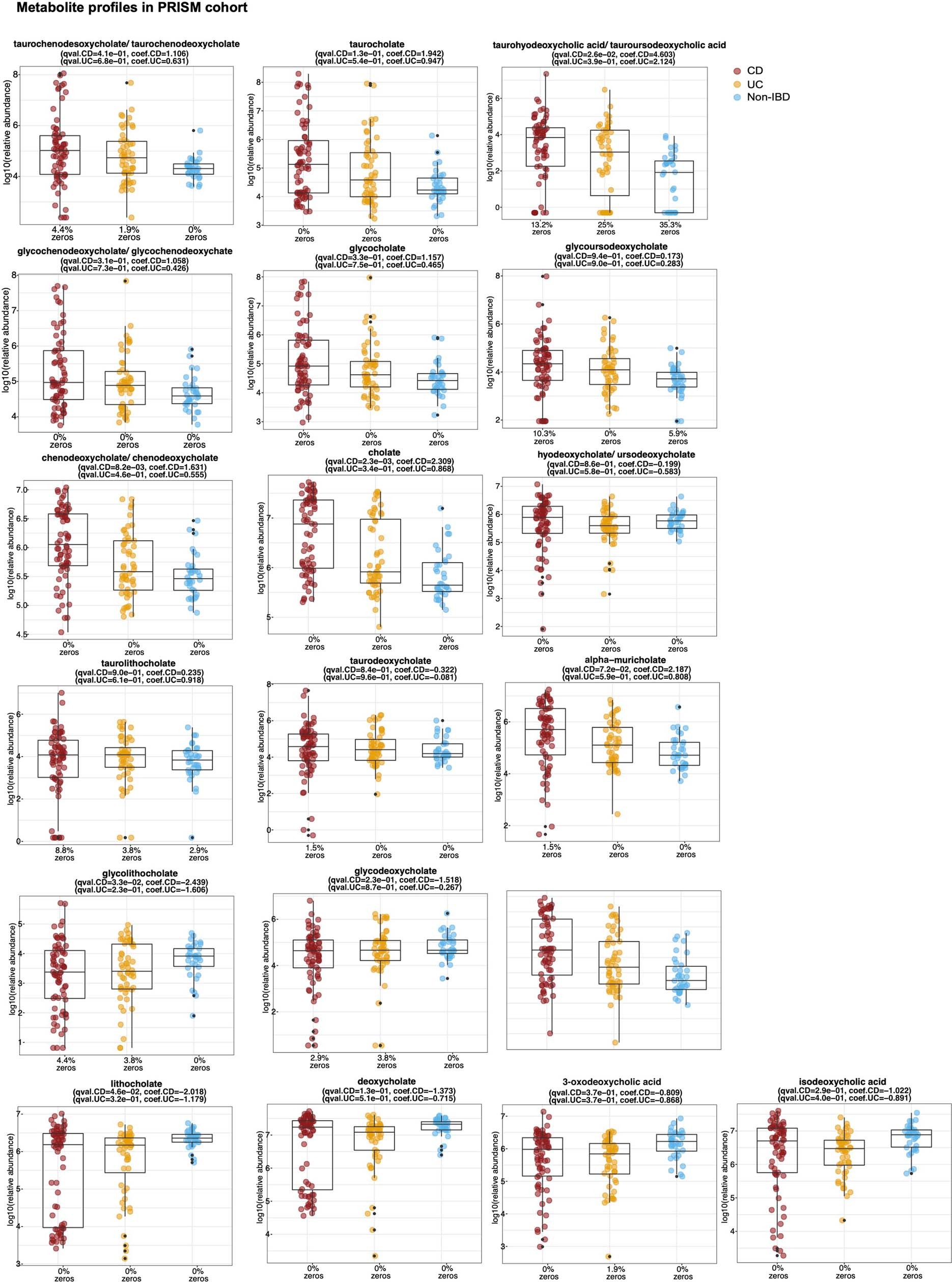

Extended Data Fig. 6: Levels of BA metabolites detected in the PRISM cohort.

From: Human gut bacteria produce ΤΗ17-modulating bile acid metabolites

Extended Data Fig. 6: Levels of BA metabolites detected in the PRISM cohort.

Abundances of identifiable BAs in PRISM cohort. BA levels were not universally decreased in CD patients, indicating that decreased levels of LCA, 3-oxoLCA, and isoLCA were not due to lower levels of all BAs in these cohorts. Boxplots show median and lower/upper quartiles with outliers outside of boxplot ‘whiskers’ (indicating the inner fences of the data). n = 34 for CD, n = 52 for UC and n = 34 for non-IBD. The percentage of zeros in each condition are added as x-axis tick labels. See Table S6 for full results.
