Extended Data Fig. 3: Detailed information for data transmission.

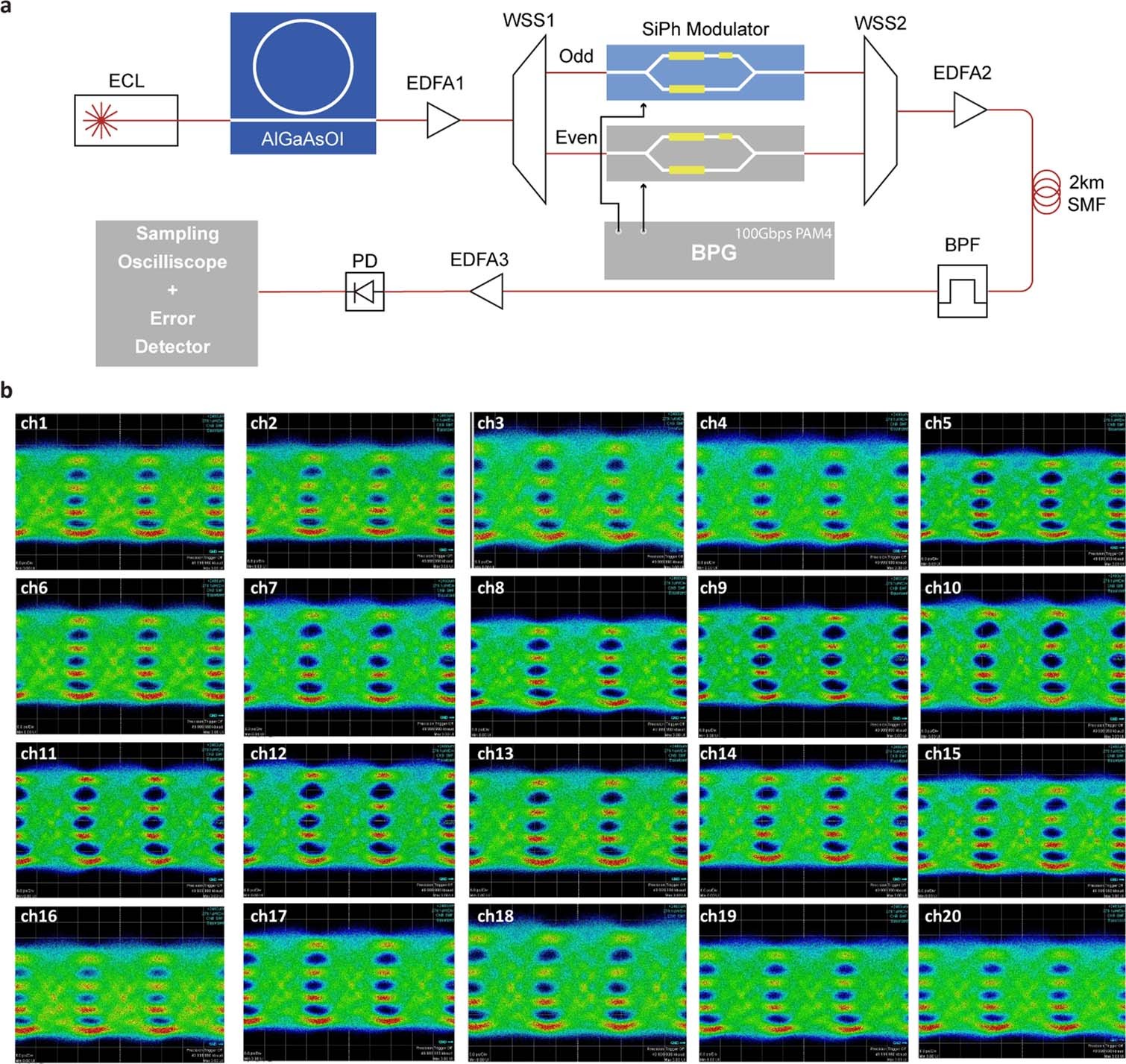

a, Detailed experimental set-up for the odd/even test band for the comb-based silicon photonics data link. b, measured 100 Gbps PAM-4 eye diagrams from the sampling oscilloscope for each channel at receiving end.
