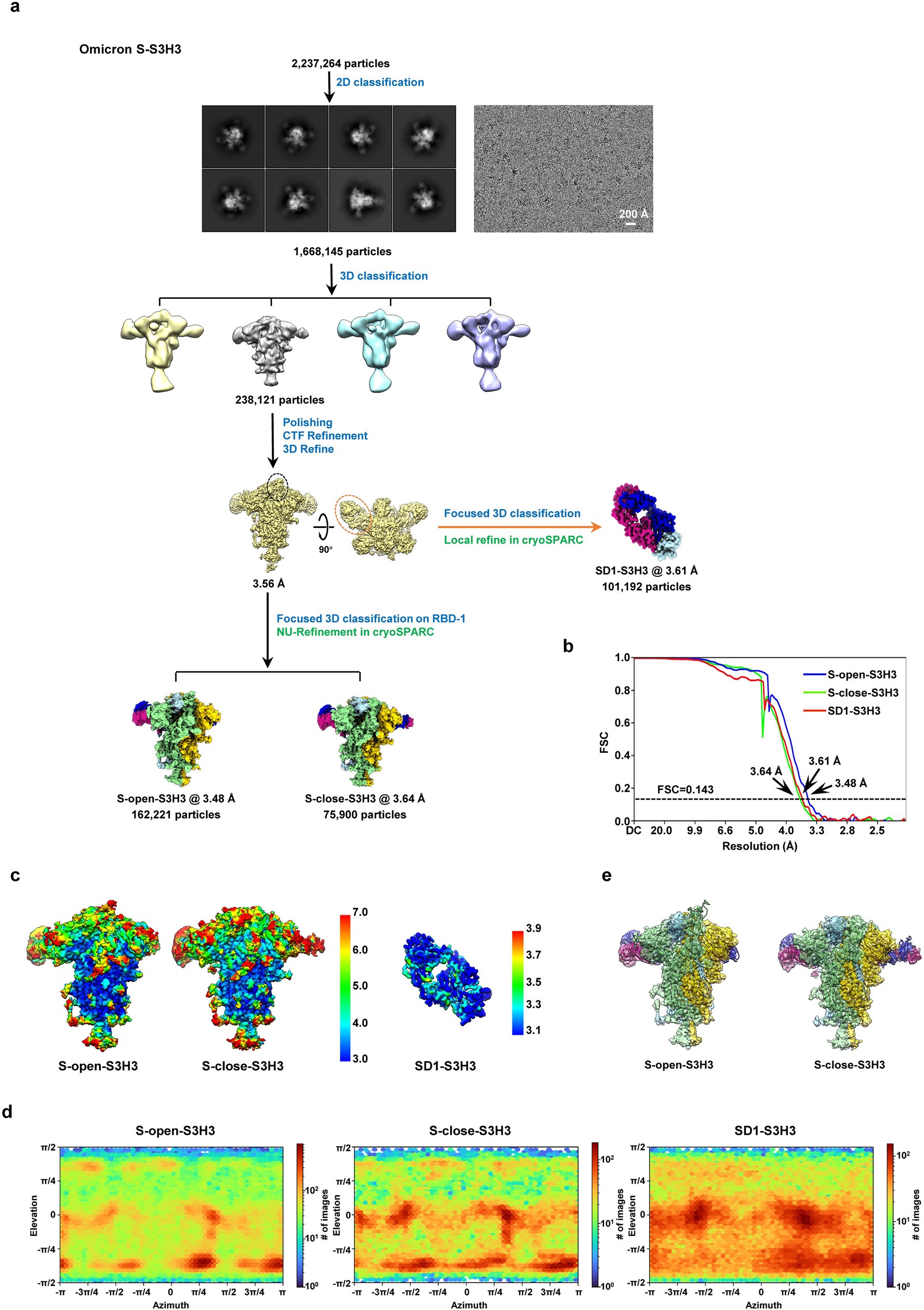

Extended Data Fig. 5: Cryo-EM analysis on the Omicron S-S3H3 Fab complex.
From: Molecular basis of receptor binding and antibody neutralization of Omicron
a, Data processing workflow for the Omicron S-S3H3 Fab complex. A representative original micrograph and the reference-free 2D class averages are also presented. b, Resolution assessment of the cryo-EM maps by FSC at 0.143 criterion. c, Local resolution evaluation of the Omicron S-S3H3 and SD1-S3H3 maps. d, Angular distribution for the three Omicron S-S3H3 complexes. e, Model-map fitting for the Omicron S-S3H3 complexes.
