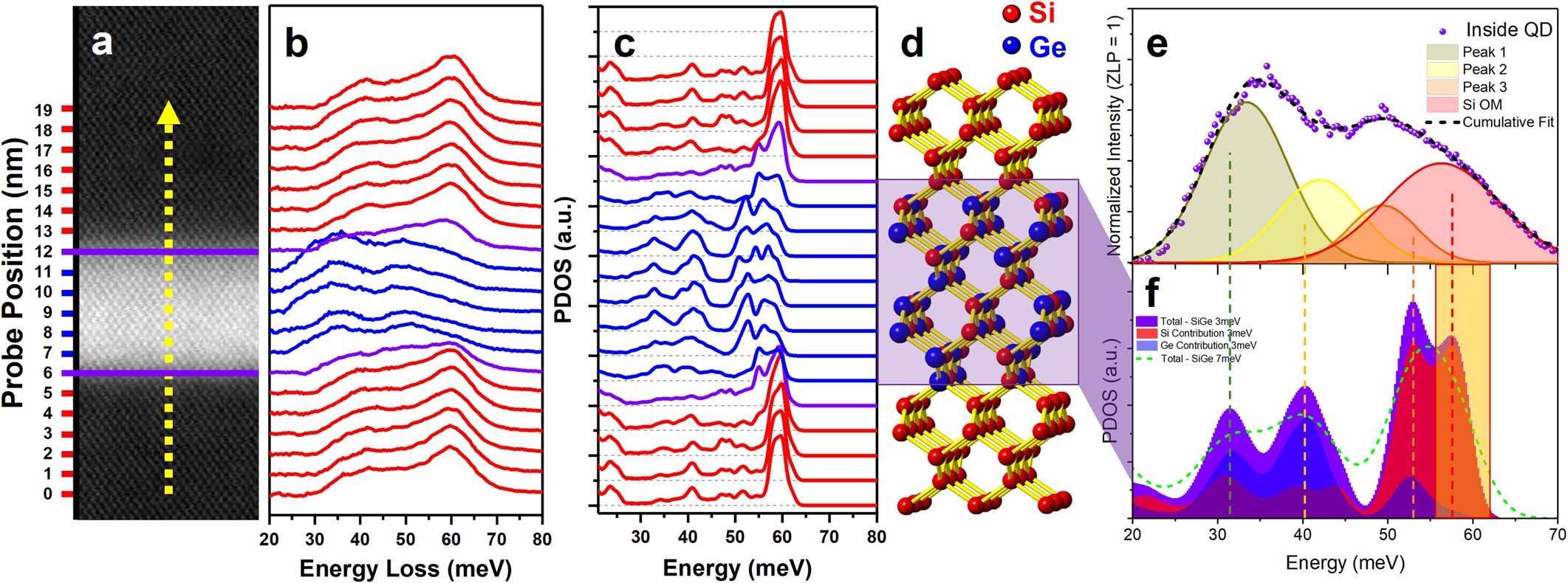

Extended Data Fig. 4: Line Scan across QD and phonon DOS of Si0.5Ge0.5 using atomistic modeling.
From: Nanoscale imaging of phonon dynamics by electron microscopy
a, HAADF image of the region consisting of top and bottom interfaces of a single QD. The yellow arrow notes the direction of the line scan and the purple lines mark the QD interfaces. b, Stacked background subtracted spectra with red, blue, and purple curves representing phonon signals in interlayer Si, SiGe QD, and interface signals. Stacked positions correspond to the probe positions labeled in a. c, Stacked calculated phonon density of states and d, associated atomic structure. e, Background subtracted, pseudo-Voigt peak separated vibrational spectra of SiGe QD. The data are replicated from Fig. 1c. f, 3meV-Gaussian-convolved phonon DOS of the Si0.5Ge0.5 region in a and its projected 3meV-Gaussian-convolved phonon DOS curves of Si and Ge. A 7meV-Gaussian-convolved phonon DOS matching the experimental energy resolution is overlaid in green. The coloured dashed lines show that positions of the prominent peaks in the phonon DOS match with the 4-peak decomposition of the experimental EELS data in e. The yellow box highlights the fact that the highest energy mode is almost entirely comprised of Si contribution to the modes in that energy region. The energy discrepancy between experimental data and theoretical model may arise from the different chemical composition and varied disordered structure.
