Extended Data Fig. 1
From: Dynamical topological phase realized in a trapped-ion quantum simulator

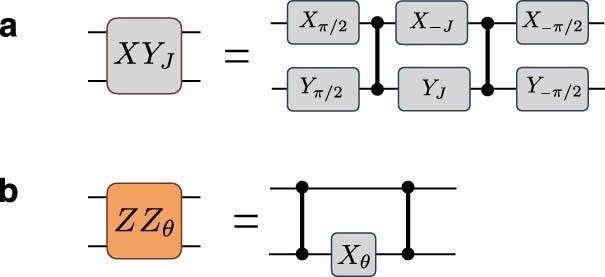

Circuit compilation. Compilation of two-qubit operations into hardware-native gates for (a) the FSPT model (Fig. 2), and (b) the EDSPT model (Fig. 1). XXθ gates are obtained from a single-qubit basis rotation of ZZθ gates. Here, a line with two dots indicates a controlled-Z gate with unitary: \({u}_{{C}_{Z}}={e}^{-i\pi /4(1+{\sigma }^{z})\otimes (1+{\sigma }^{z})}\), and single qubit gates are listed as Pauli rotations with unitary \({u}_{X,{Y}_{\theta }}={e}^{-i\frac{\theta }{2}{\sigma }^{x,y}}\).
