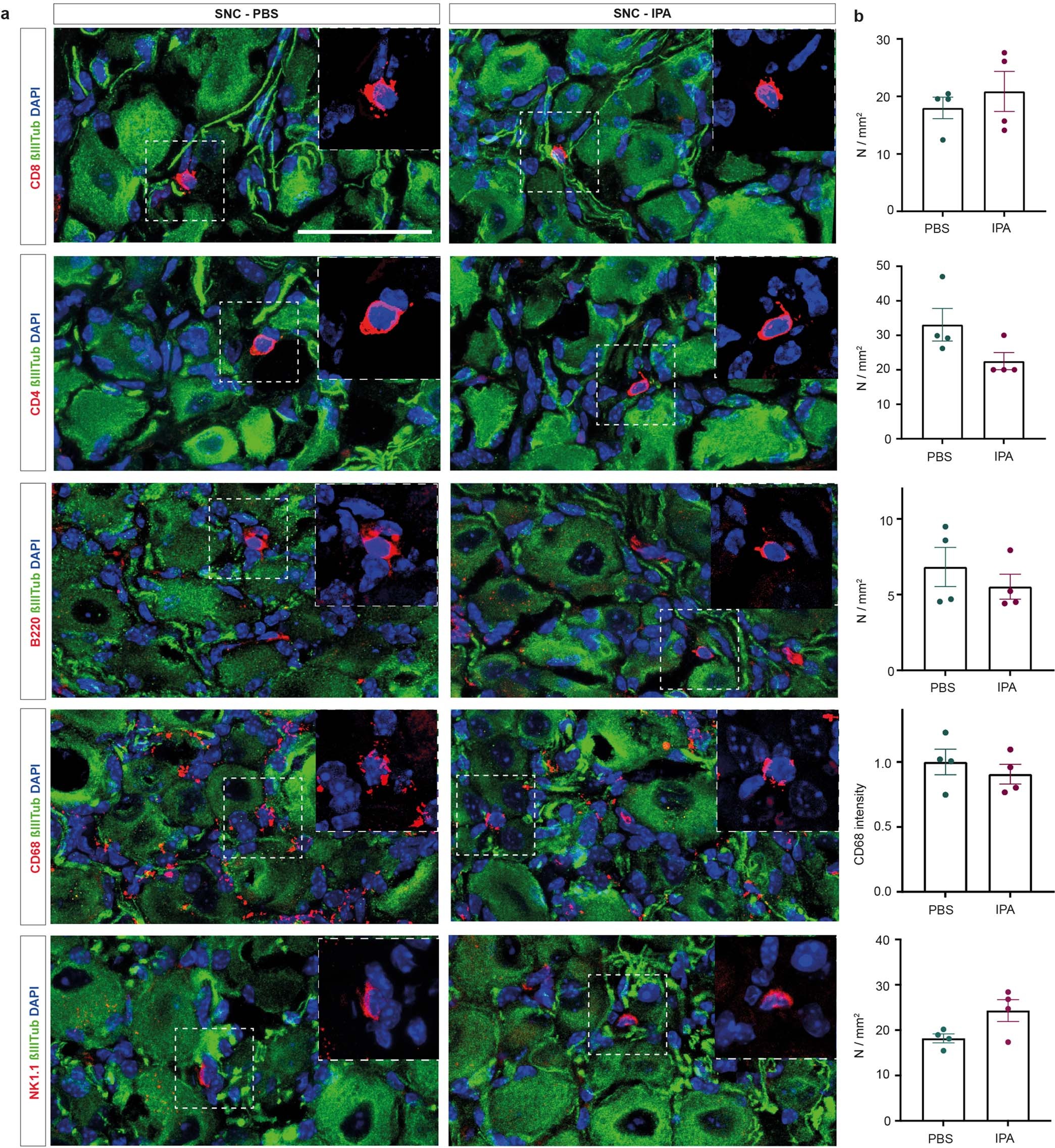

Extended Data Fig. 8: Immune cell quantification following IPA and PBS treatment including 3 days after SNC.
From: The gut metabolite indole-3 propionate promotes nerve regeneration and repair
a. CD8, CD4, B220, CD68 and NK1.1 (red) coimmunostained with βIIITubulin (green) and DAPI (blue) in DRG sections from IPA and PBS treated groups 3 days after SNC. Scale bar: 50 µm. Scale bar in magnification: 10 µm. b. Quantification of CD8 T-cells, CD4 T-cells, B-cells (B220), Macrophages (CD68) and NK cells (NK1.1) number in IPA and PBS treated DRG 3 days after SNC (N = 4 biologically independent animals per group, Student’s unpaired t-test, data are presented as mean values +/− SEM).
