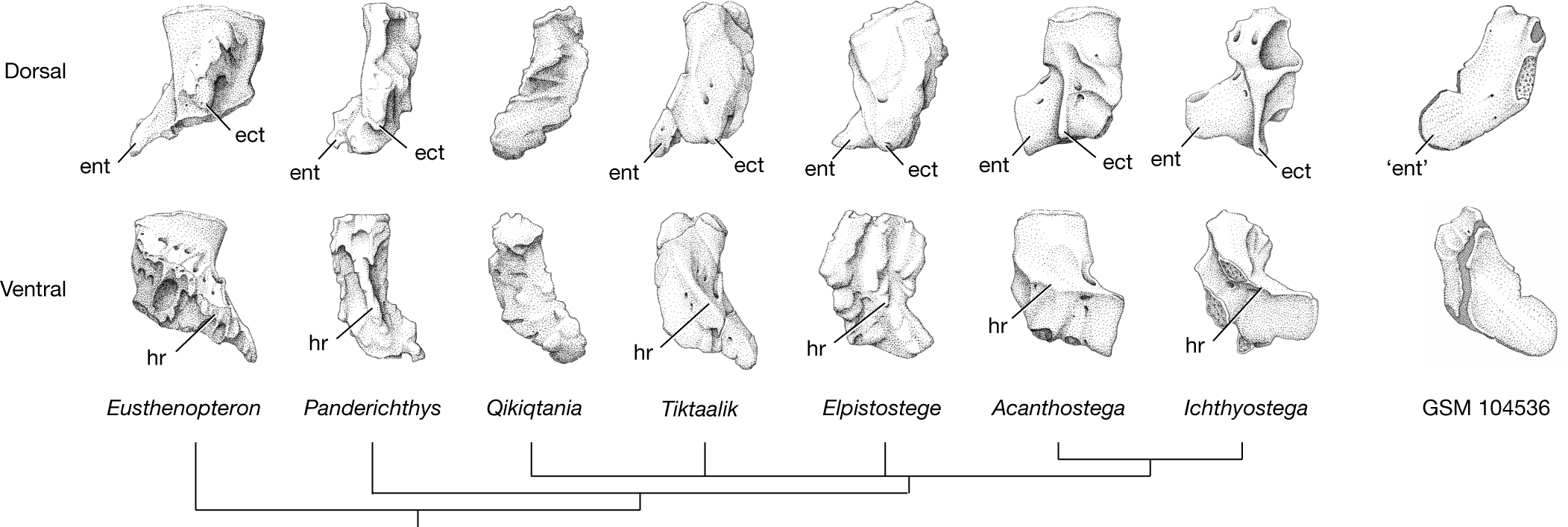

Fig. 5: Humeri at the fin-to-limb transition.
From: A new elpistostegalian from the Late Devonian of the Canadian Arctic
For consistency of orientation between species, several specimens have been reflected, so that each is represented as being from the right side. Illustrations are based on previously published descriptions: Eusthenopteron28, Panderichthys2,3, Tiktaalik5, Elpistostege9, Acanthostega37, Ichthyostega30 and GSM 104536 (refs. 10,14). Abbreviations: ect, ectepicondyle; ent, entepicondyle; hr, humeral or ventral, ridge.
