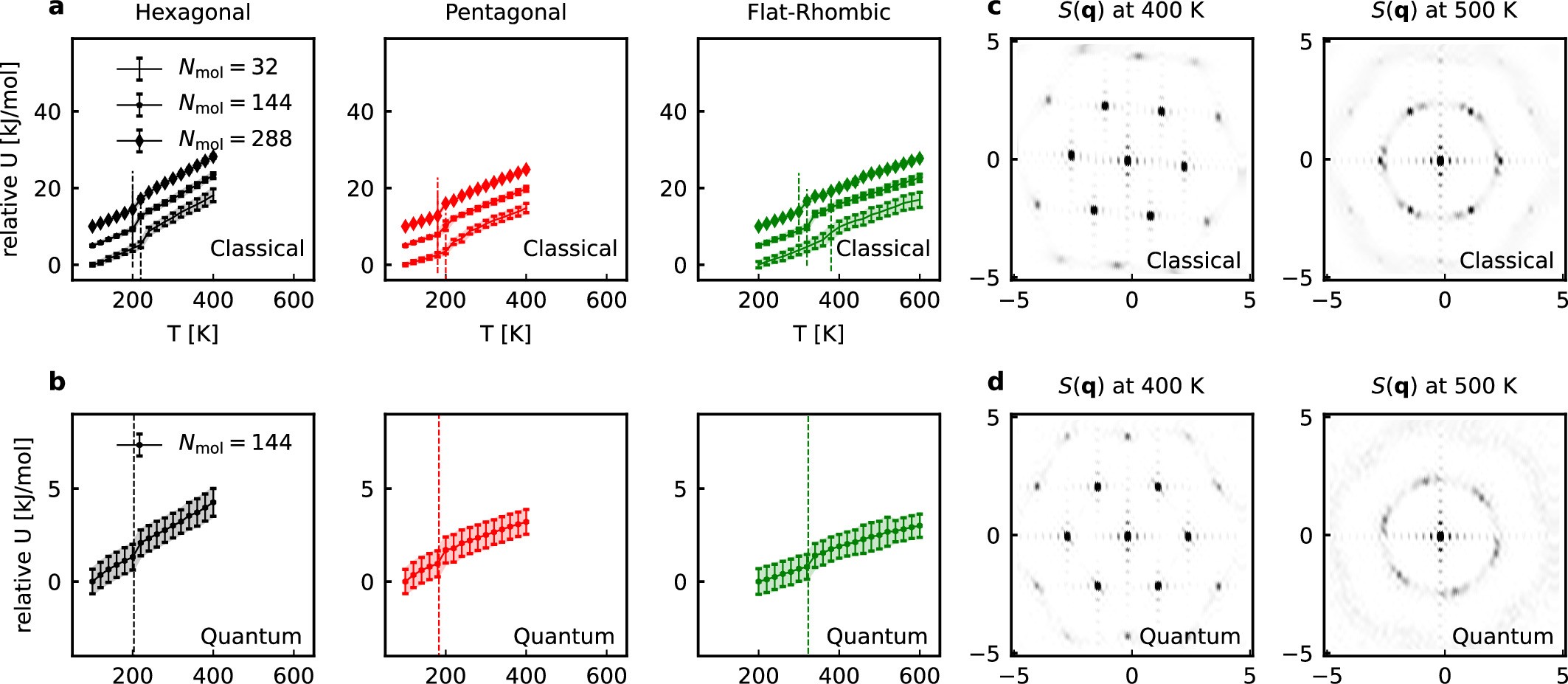

Extended Data Fig. 4: Sensitivity analysis of coexistence lines with respect to finite size and quantum nuclear effects.

(a) The temperature dependence of the potential energy for simulations initialized with monolayer hexagonal, pentagonal and flat-rhombic ice phases simulations at 0 pressure, 1.5 GPa and 3 GPa respectively. The number of water molecules in the simulation cell are indicated in the legend, with larger (smaller) marker sizes corresponding to larger (smaller) system sizes. The potential energy of the curves have been translated vertically to make it easier to discern the temperature of melting (indicated by a vertical dashed line) for different systems sizes. Shaded regions indicate statistical uncertainty. (b) The temperature dependence of the potential energy for simulations initialized with monolayer hexagonal, pentagonal and flat-rhombic ice phases at 0 pressure, 1.5–3 GPa respectively, with nuclear quantum effects. Shaded regions indicate statistical uncertainty and the melting temperature is indicated by a vertical dashed line. (c) The structure factor of monolayer confined water in the hexatic phase (400 K) and at the transition between the hexatic and the liquid phase (500 K), without nuclear quantum effects. (d) The structure factor of monolayer confined water in the hexatic phase (400 K) and at the transition between the hexatic and the liquid phase (500 K), with nuclear quantum effects.
