Extended Data Fig. 3: Motif enrichment analysis of the E13 mouse embryo data.

From: Spatial profiling of chromatin accessibility in mouse and human tissues

Extended Data Fig. 3

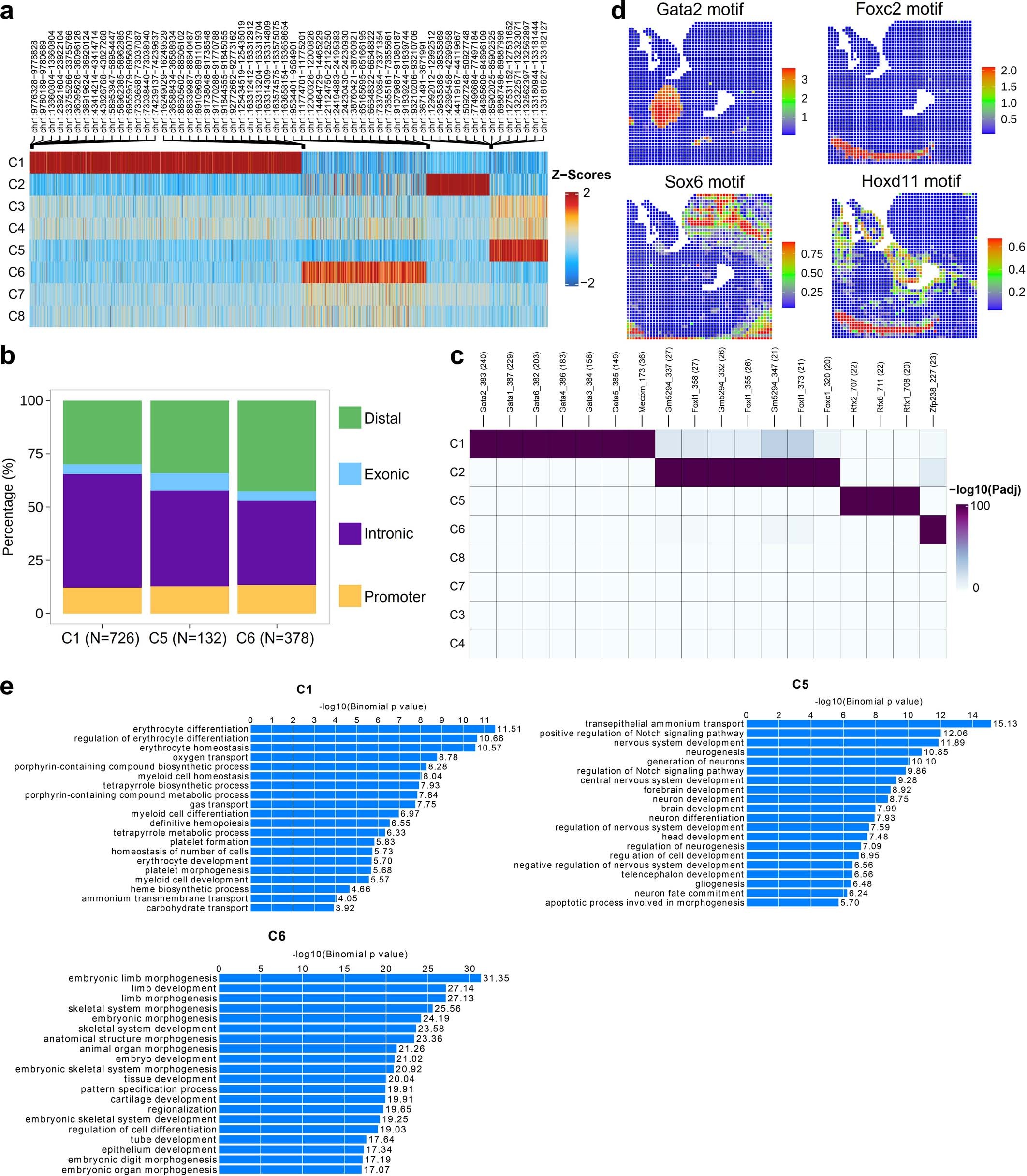

a, Heatmap of spatial-ATAC-seq marker peaks across all clusters identified with bias-matched differential testing. b, Annotation of marker peaks across clusters. c, Heatmap of motif hypergeometric enrichment-adjusted P values within the marker peaks of each cluster. d, Spatial mapping of selected TF motif deviation scores. e, GREAT enrichment analysis of marker peaks across clusters.
