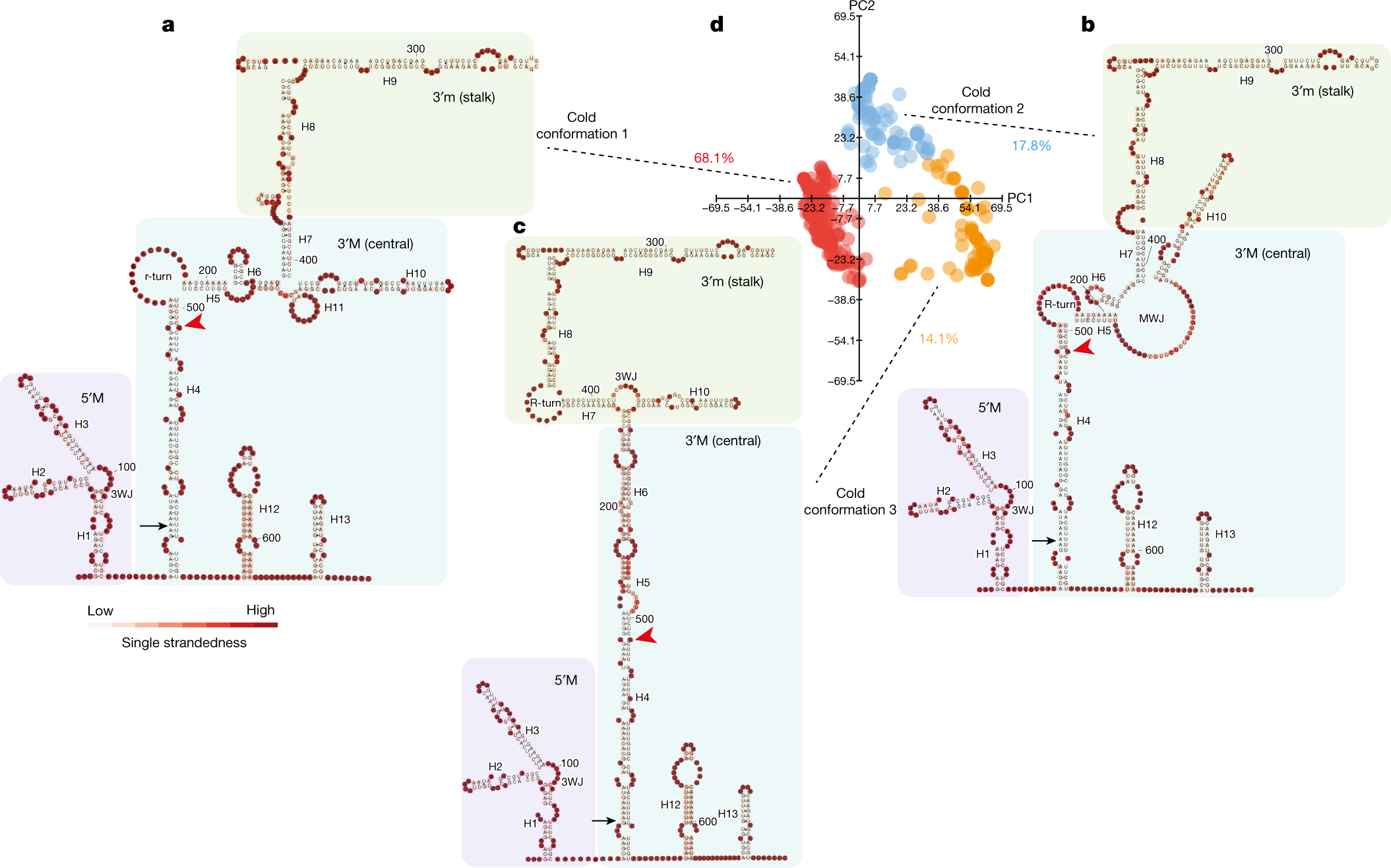

Fig. 3: The three major conformations of class II.i in cold-grown plants.
From: In vivo single-molecule analysis reveals COOLAIR RNA structural diversity
a–c, Representative structural models of cold conformation 1 (a), cold conformation 2 (b) and cold conformation 3 (c) from d. Models were coloured according to the likelihood of single strandedness. The red arrowheads indicate the site corresponding to the FLC TSS. d, Visualization of the in vivo structural conformations of class II.i in cold-grown plants. Structures were directly generated from 1,269 individual mutational profiles. Data were visualized using PCAs. Each dot represents a unique single structure derived from each single-molecule mutational profile.
