Fig. 3: Partial SC-CO2 estimates and uncertainty levels strongly differ across the four climate damage sectors. | Nature

Fig. 3: Partial SC-CO2 estimates and uncertainty levels strongly differ across the four climate damage sectors.

From: Comprehensive evidence implies a higher social cost of CO2

Fig. 3: Partial SC-CO2 estimates and uncertainty levels strongly differ across the four climate damage sectors.

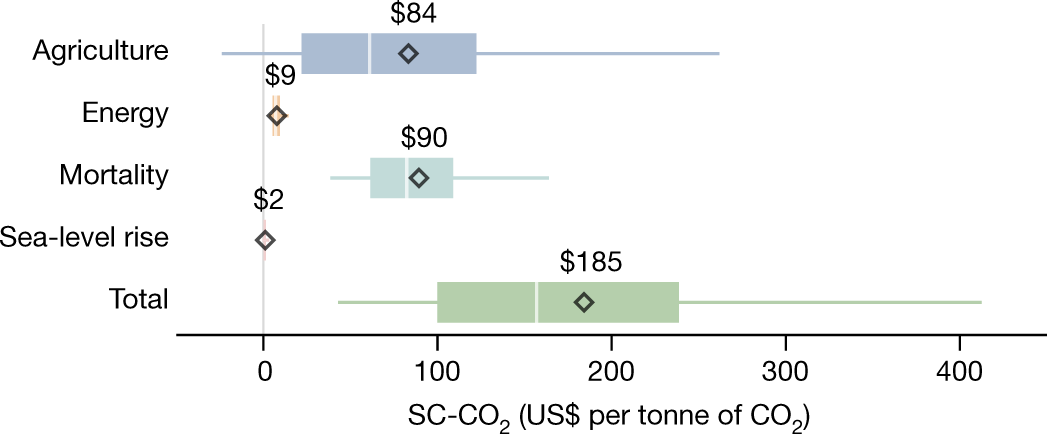

Box and whisker plots for the climate damage sectors included in the GIVE model, based on partial SC-CO2 estimates for each sector. The figure depicts the median (centre white line), 25%–75% quantile range (box width), and 5%–95% quantile range (coloured horizontal lines) partial SC-CO2 values. Black diamonds highlight each sector’s mean partial SC-CO2, with the numeric value written directly above. All SC-CO2 values are expressed in 2020 US dollars per metric tonne of CO2.
