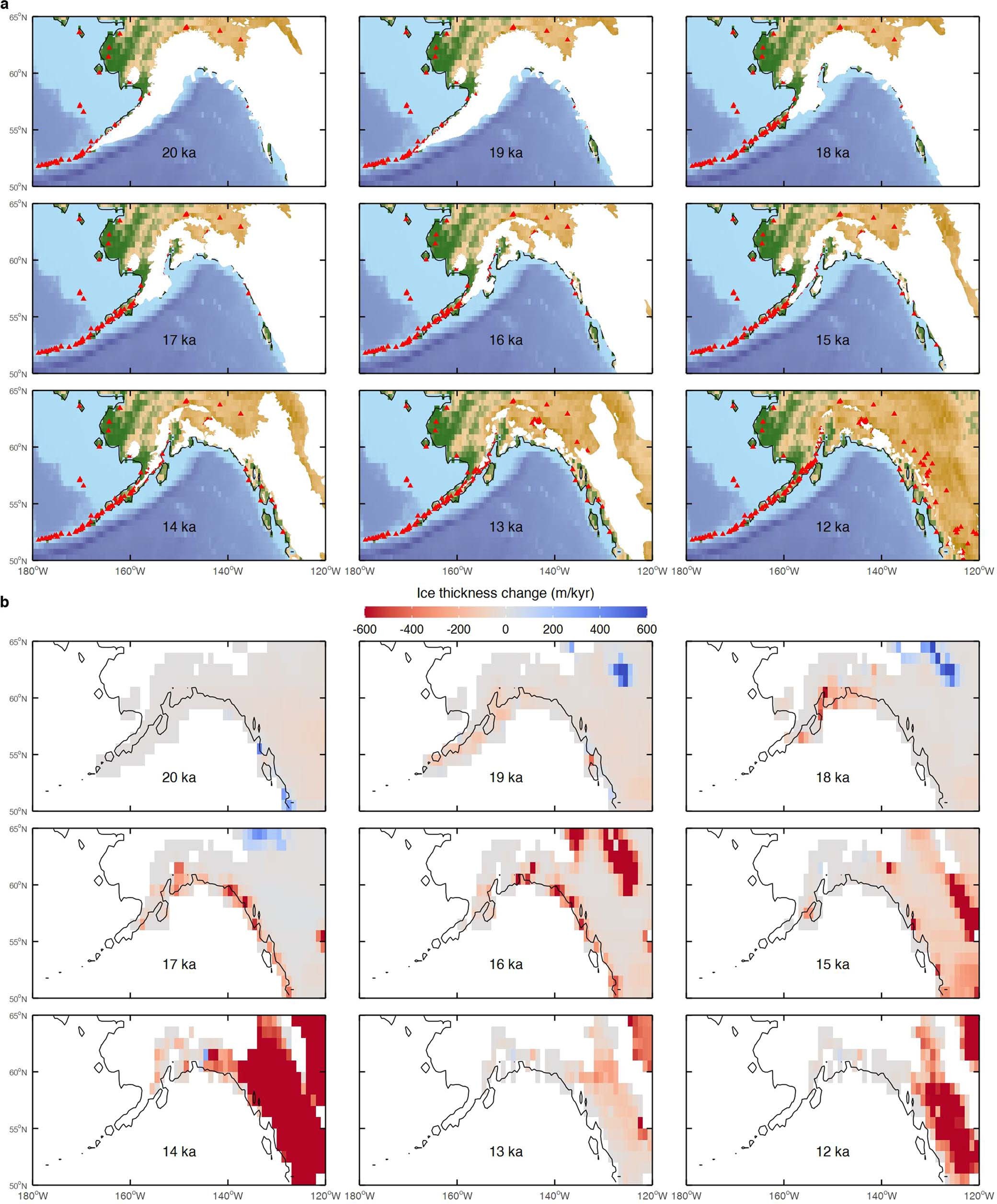

Extended Data Fig. 9: Histories of the CIS.

a, Radiocarbon-based ice sheet extent reconstruction from 20 ka to 12 ka (ref. ⁴¹). b, Changes of ice thickness in the ICE-7G model from 20 ka to 12 ka (ref. ²⁵). Red colour indicates ice loss, whereas blue colour indicates ice accumulation.
