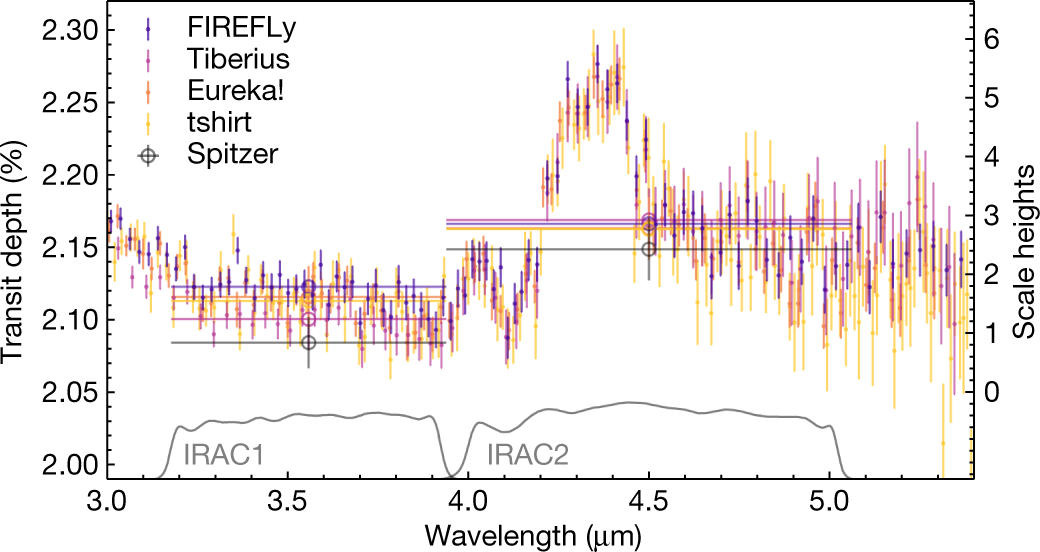

Fig. 2: Independent reductions of the WASP-39b transmission spectrum.
From: Identification of carbon dioxide in an exoplanet atmosphere
The JWST data (small coloured points) are compared with Spitzer’s two Infrared Array Camera (IRAC) broadband photometric measurements (grey circles and corresponding sensitivity curves labelled IRAC1 and IRAC2). The axis on the right shows equivalent scale heights (750–1,000 km) in WASP-39b’s atmosphere; for plotting purposes, we assume that one scale height corresponds to 800 km. The JWST data are consistent with the Spitzer points (within 2σ) when integrated over the broad bandpasses (indicated by the horizontal lines). The relative transit depths between the 3.6-µm and 4.5-µm channels are also consistent within 2σ between independent reductions of the JWST data, with most of the deviation coming from the 3.6-µm bandpass. Vertical error bars indicate 1σ uncertainties.
