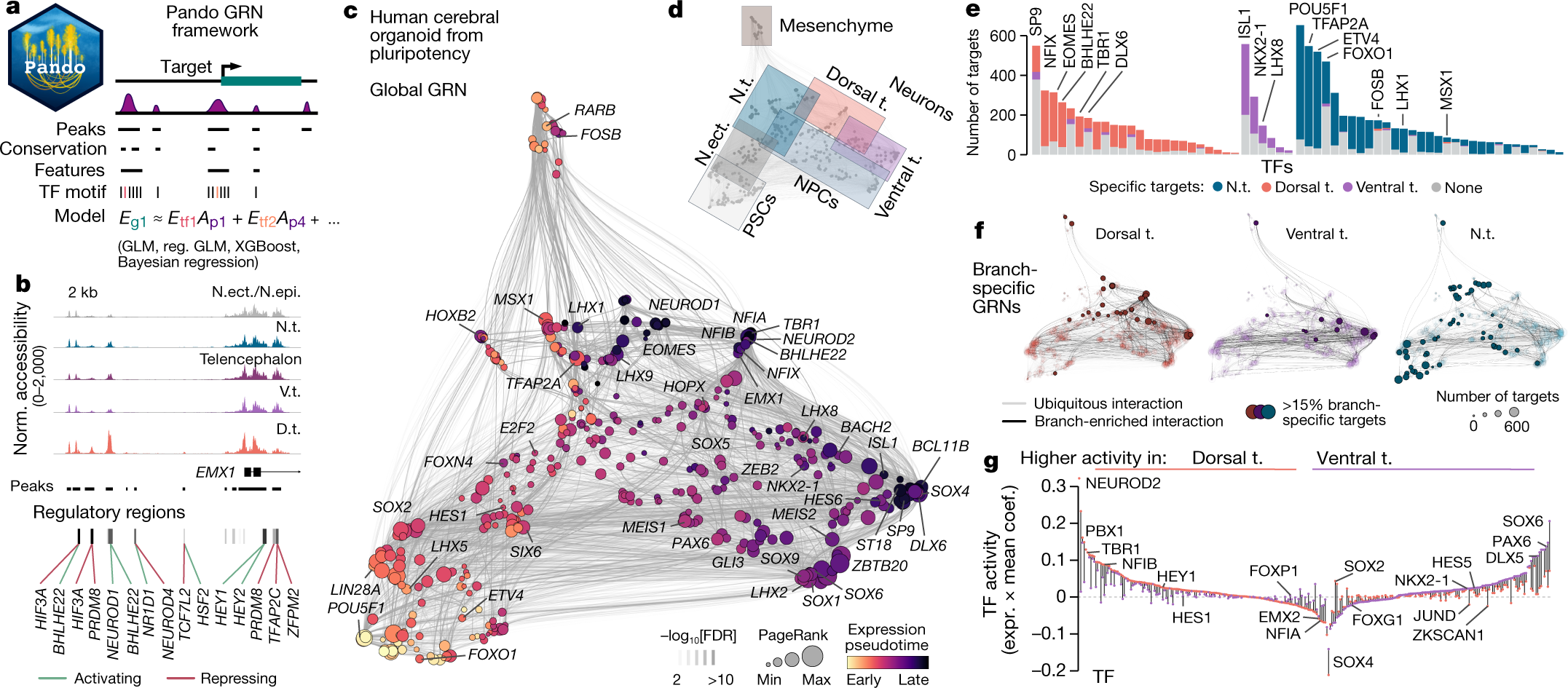

Fig. 2: Pando leverages multimodal measurements to infer a multiphasic GRN underlying human brain organoid development.
