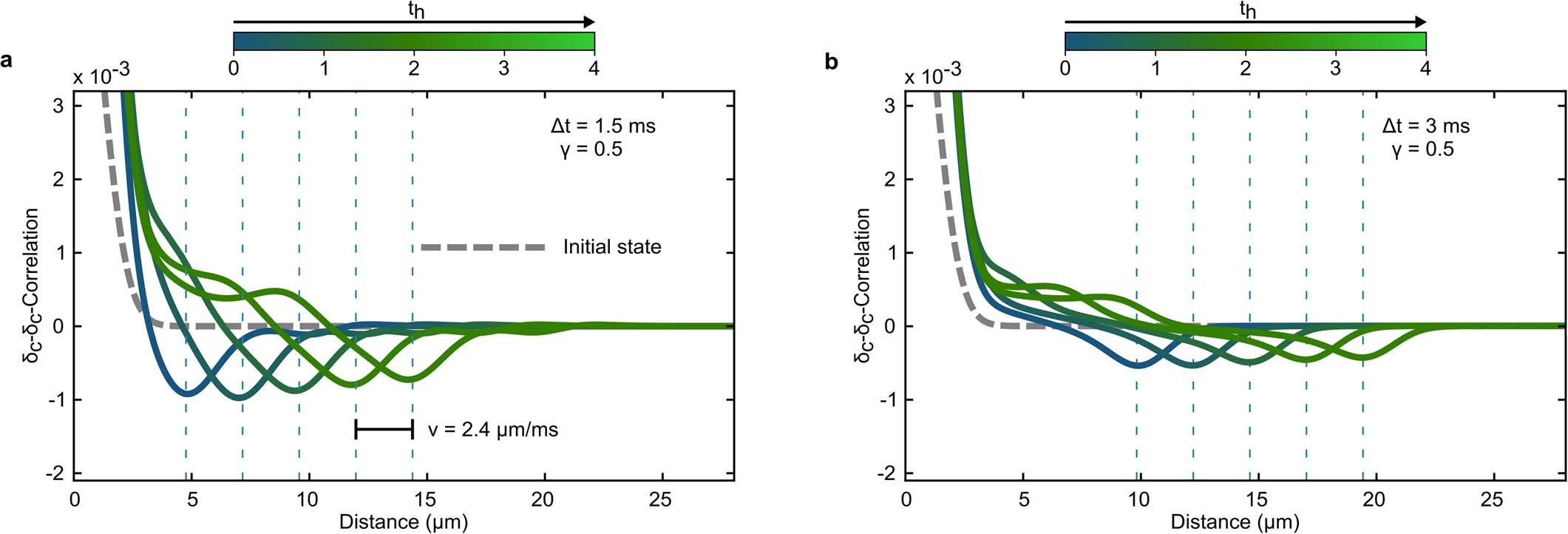

Extended Data Fig. 1: Theoretical prediction for density-contrast correlation functions in real space.

From: Quantum field simulator for dynamics in curved spacetime

Extended Data Fig. 1

The initial temperature is taken to be 40 nK, the final speed of sound is 1.2 µm ms−1 and the ramp goes from as = 350aB to as = 50aB with scale factor a(t) tγ for a decelerated expansion with γ = 0.5 and a duration ∆t = 1.5 ms (left) and ∆t = 3.0 ms (right). The fields are convoluted with a Gaussian of σ = 0.8 µm corresponding to the optical resolution of the experiment. Different colours correspond to different hold times.
