Extended Data Fig. 3: T-linear behaviour observed in D3. | Nature

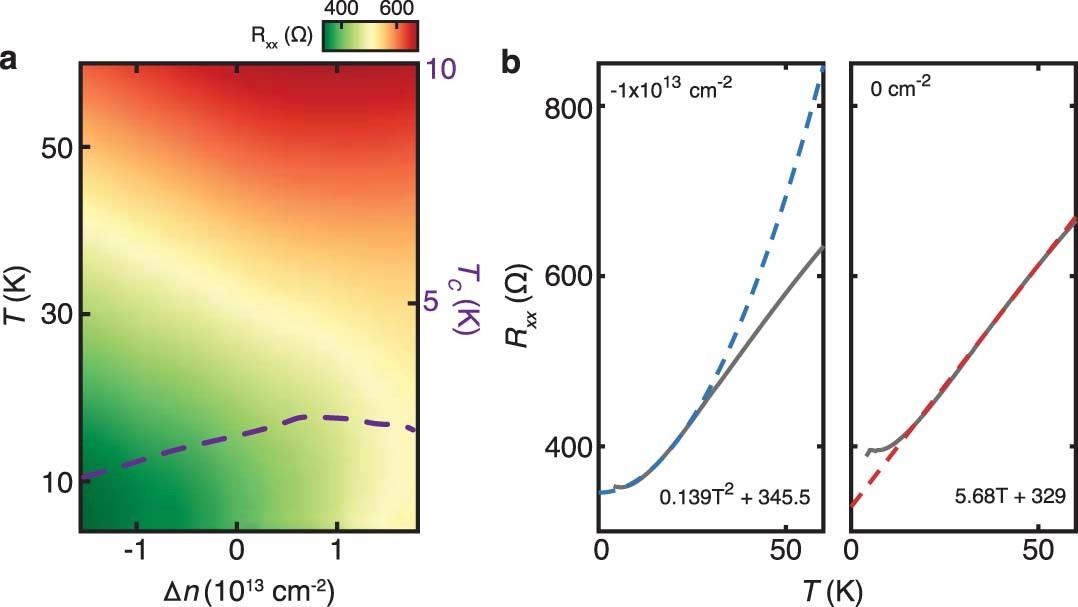

Extended Data Fig. 3: T-linear behaviour observed in D3.

From: Coupled ferroelectricity and superconductivity in bilayer Td-MoTe2

Extended Data Fig. 3

a, Colour plot of resistance vs temperature and doping. Doping dependent superconducting critical temperature (from Extended Data Fig. 2) is superimposed on the colour plot. b,Rxx versus temperature for various dopings. Blue (red) dashed lines indicate quadratic (linear) fits to the data.
