Fig. 4: CCI resolved dynamics of the fluctuating domain network.
From: Coherent correlation imaging for resolving fluctuating states of matter

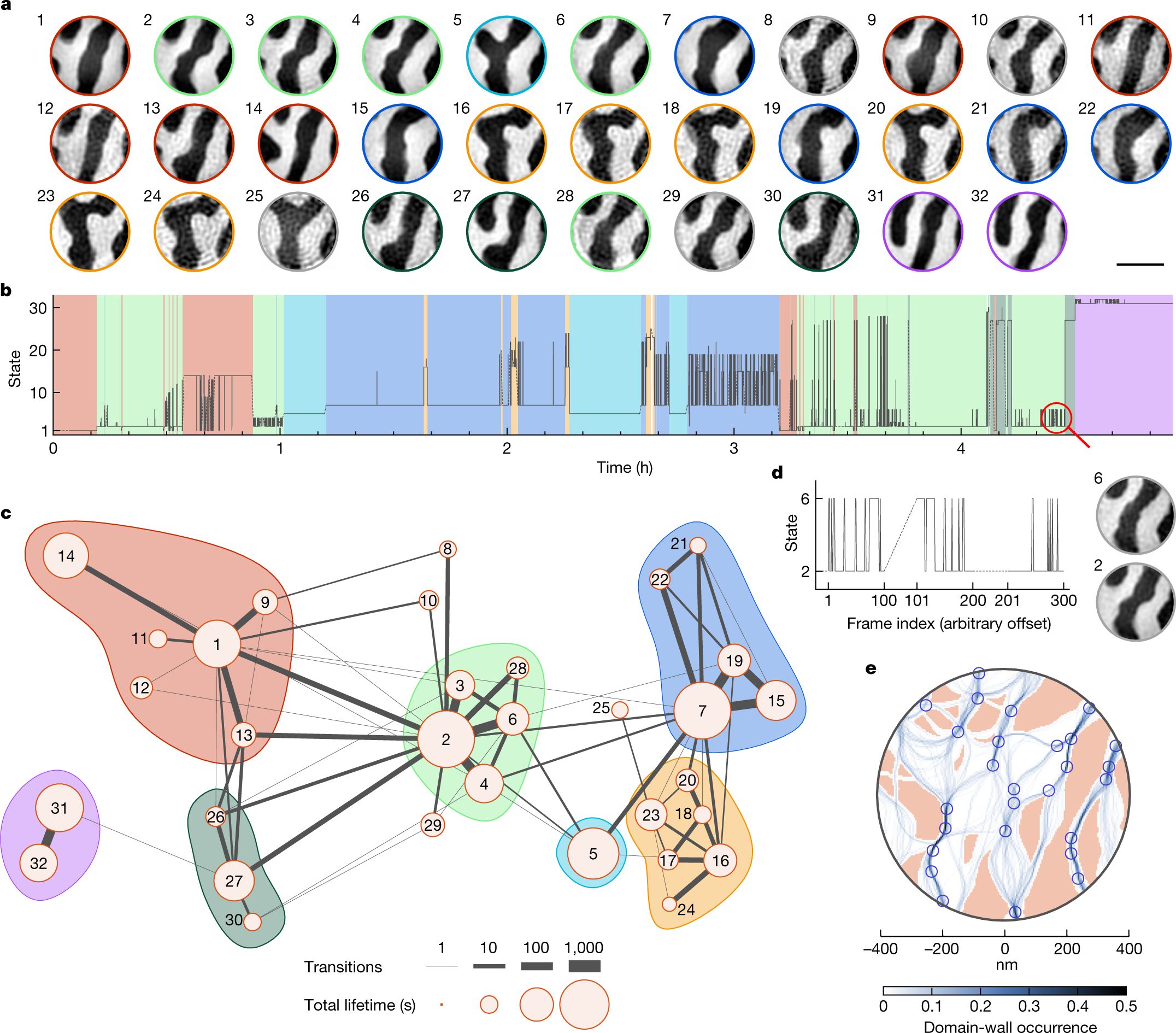

a, Real-space images of all domain states. The circular coloured borders refer to the agglomerates indicated in c. b, Temporal evolution of the states. The background shades refer to the agglomerates. Dashed lines indicate times without data points. c, Transition network of the domain configurations. The distance between nodes approximately represents the Pearson distance of the corresponding states. The width of the connecting lines indicates the number of observed pair transitions. The diameter of the circular orange contours illustrates the total observed lifetime of each state. Background colours highlight state agglomerates. d, Magnification of the region marked with a magnifying glass in b. The displayed real-space images were reconstructed exclusively from the corresponding set of frames. e, Map of attractive (blue dots) and repulsive (red areas) pinning sites. The background shows the position of the domain walls and their relative occurrence in the internal modes. Scale bar, 500 nm.
