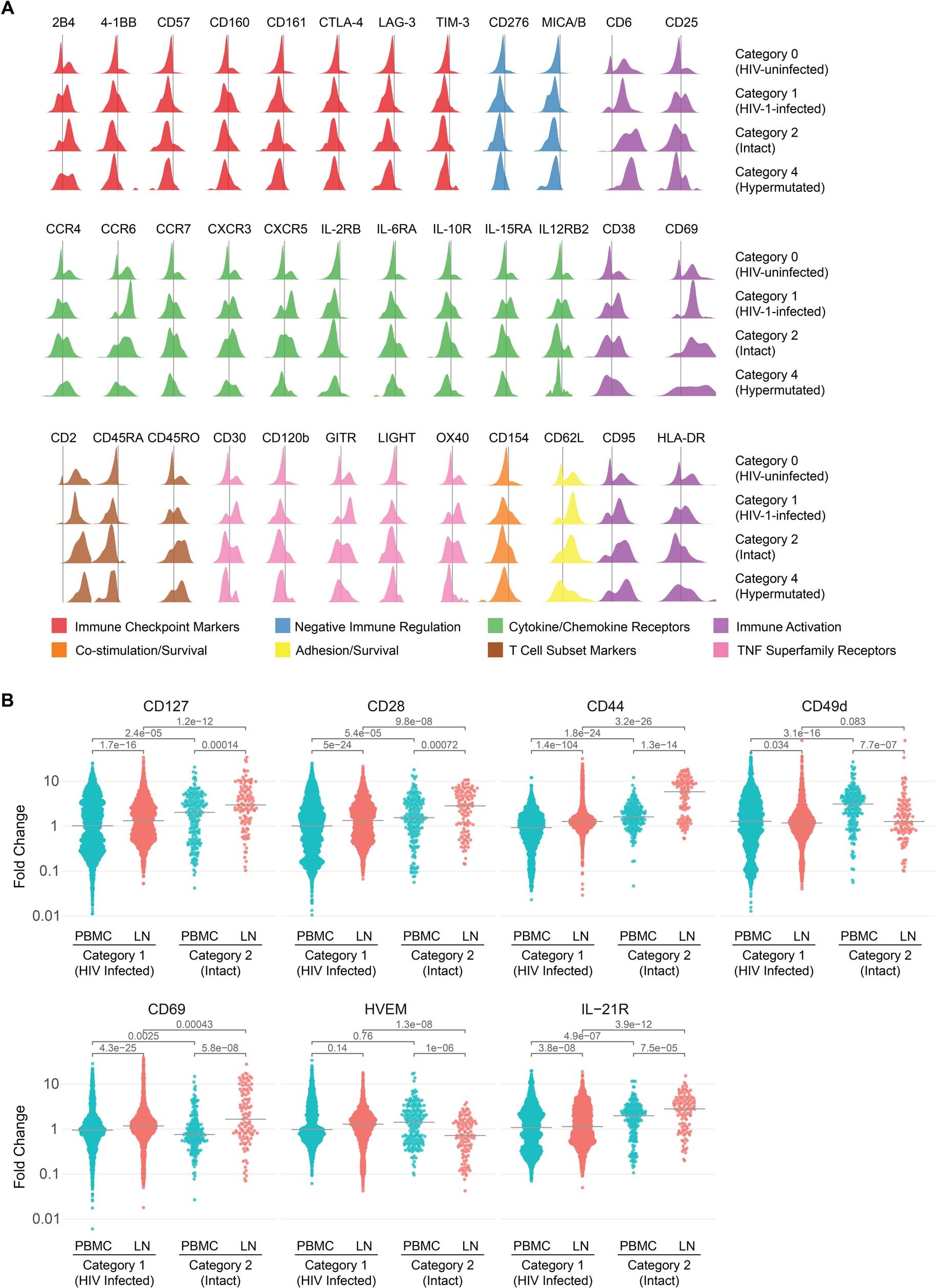

Extended Data Fig. 10: Additional phenotypic properties of HIV-1 reservoir cells from lymph nodes.
From: Phenotypic signatures of immune selection in HIV-1 reservoir cells
(A): Density plots reflecting the surface expression of indicated phenotypic markers on HIV-1-infected mCD4+ T cells in lymph nodes from categories 1, 2 and 4. Category 0 cells are shown for comparison. (B): Exploratory comparison of selected phenotypic markers between reservoir cells from peripheral blood and lymph nodes. Data reflect fold-changes in expression intensities of indicated surface markers in category 1 cells (all HIV-1-infected cells) and category 2 cells (enriched for cells harboring intact HIV-1 proviruses), normalized to category 0 cells (uninfected cells), from peripheral blood and lymph nodes. Significance was tested using two-sided Mann Whitney U tests, FDR-adjusted p-values are shown.
