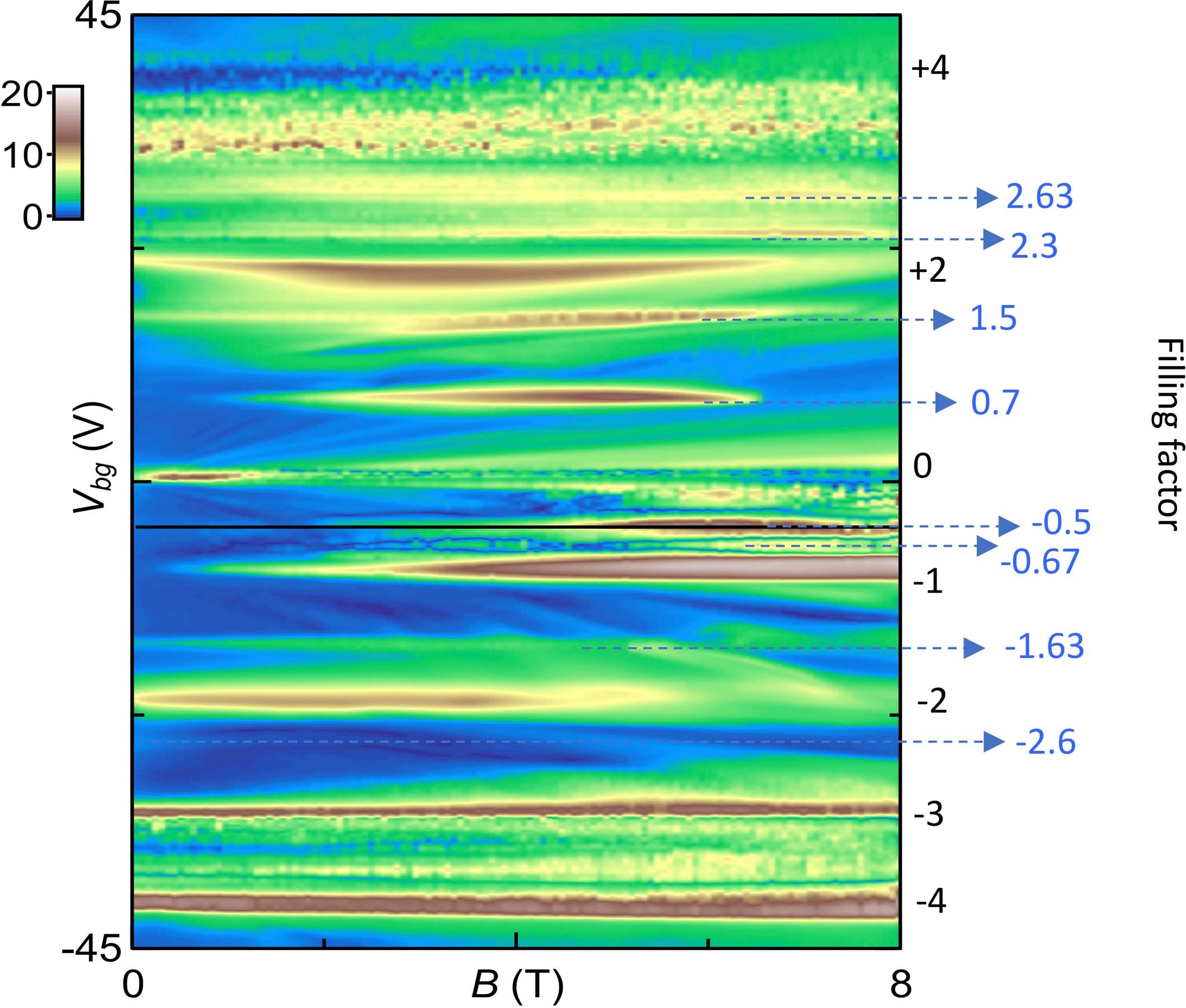

Extended Data Fig. 1: Rxx (Vbg, B) of the device at T = 0.3 K.
From: Evidence for Dirac flat band superconductivity enabled by quantum geometry
The numbers on the right indicate the filling factors of the peaks (where the full-filling of the minibands correspond to filling factors \(\widetilde{\nu }\) = ±4). Using the convention that the full-filling of the minibands correspond to filling factor \(\widetilde{\nu }\) = ±4, we identify a number of peaks at fractional fillings of \(\widetilde{\nu }\) = −0.5, 1.5 and N ± 1/3, where N is an integer.
