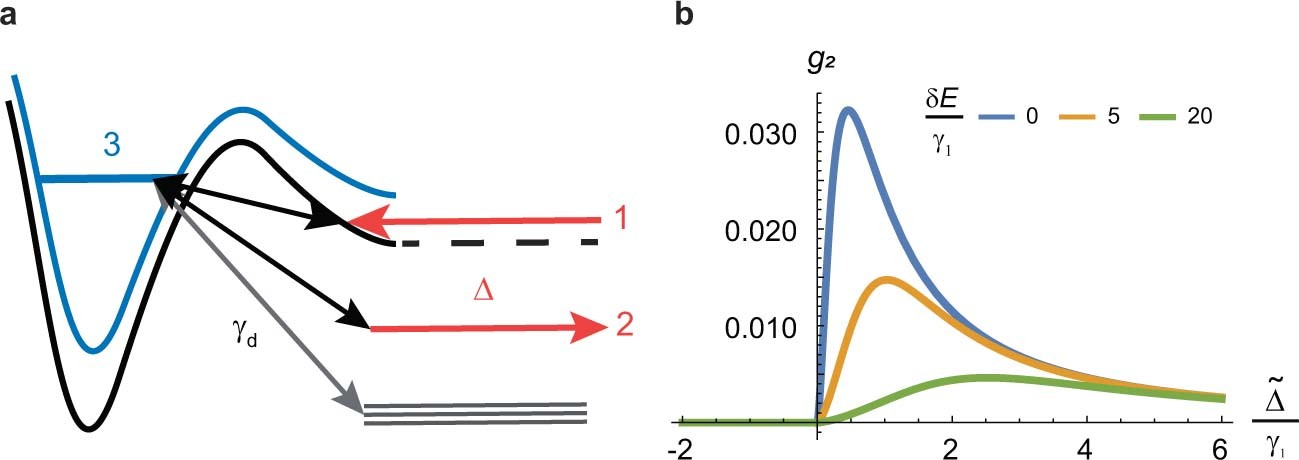

Extended Data Fig. 6: Degeneracy-induced resonance model.
From: A Feshbach resonance in collisions between triplet ground-state molecules
a, Schematic of the resonance model with two open channels and a p-wave bound state trapped behind a centrifugal barrier. b, Inelastic rate \({g}_{2}\left(\widetilde{\Delta }\right)\) (in arbitrary units) plotted as a function of \(\widetilde{\Delta }/{\gamma }_{1}\) for the different values of detuning from resonance normalized by γ1, δE/γ1. Note that for \(\widetilde{\Delta } < 0\), the channel |2⟩ becomes closed and thus \({g}_{2}\left(\widetilde{\Delta }\right)=0\).
