Extended Data Fig. 4: Expression, purification and activity measurement of selected de-novo-designed luciferases for h-CTZ.

From: De novo design of luciferases using deep learning

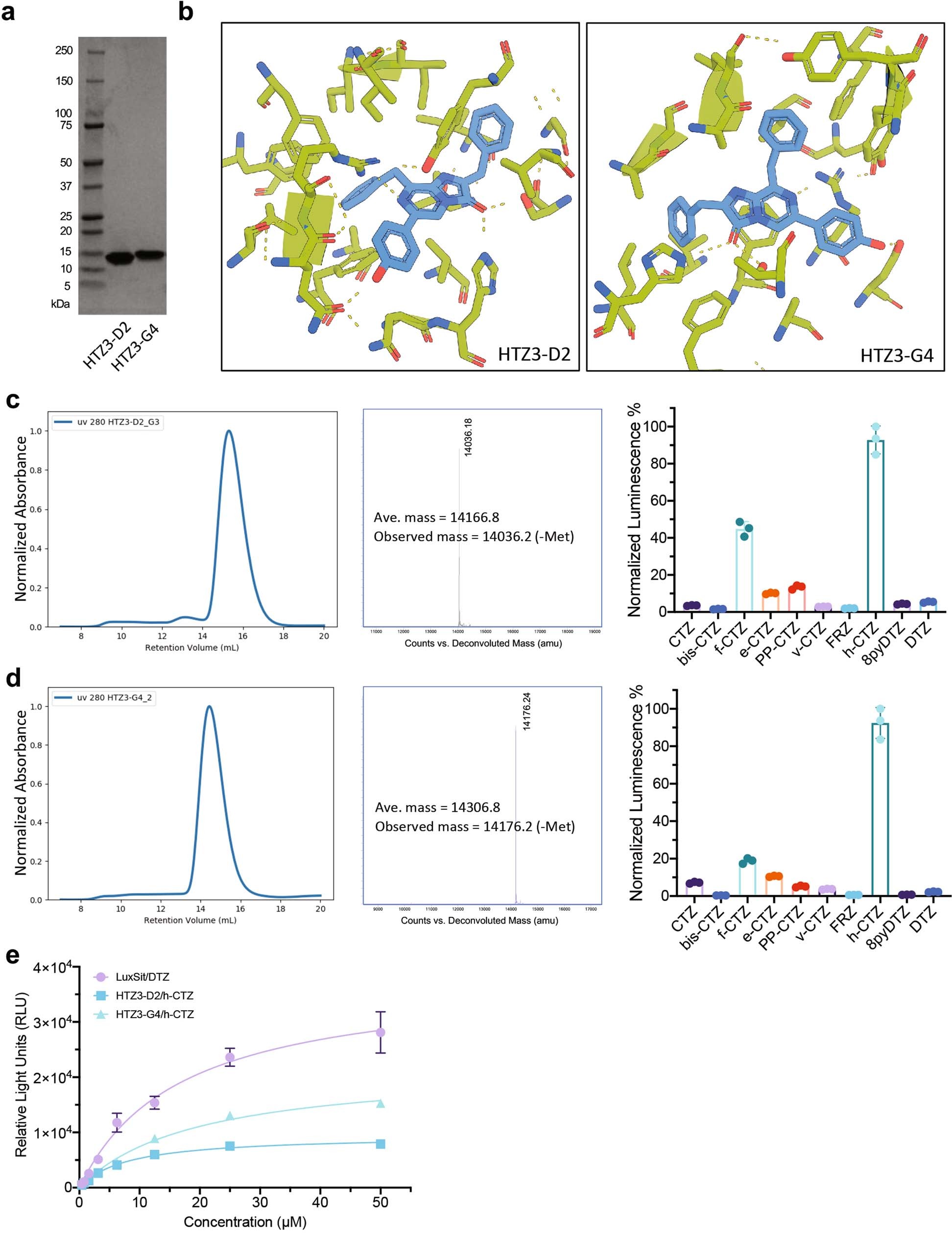

Extended Data Fig. 4: Expression, purification and activity measurement of selected de-novo-designed luciferases for h-CTZ.

a, Coomassie-stained SDS–PAGE of HTZ3-D2 and HTZ3-G4 purified from recombinant expression in E. coli. b, Magnified views of HTZ3-D2 (left panel) and HTZ3-G4 (right panel) illustrated the side-chain preorganization of luciferase-h-CTZ interactions. c,d, Size-exclusion chromatography (left), deconvoluted mass spectrum (middle), and the normalized luciferase activities on selected compounds (right) of c, HTZ3-D2 and d, HTZ3-G4, which suggested high specificity for the design target substrate, h-CTZ. e, Substrate concentration dependence of LuxSit (w/ DTZ), HTZ3-D2 (w/ h-CTZ), and HTZ3-G4 (w/ h-CTZ) activity in PBS. All data points were fitted to the Michaelis-Menten equation. HTZ3-D2 and HTZ3-G4 showed Km values of 7.9 and 19.5 μM with ~25% and ~58% Imax of LuxSit, respectively. Data are presented as mean ± s.d. (n = 3).
