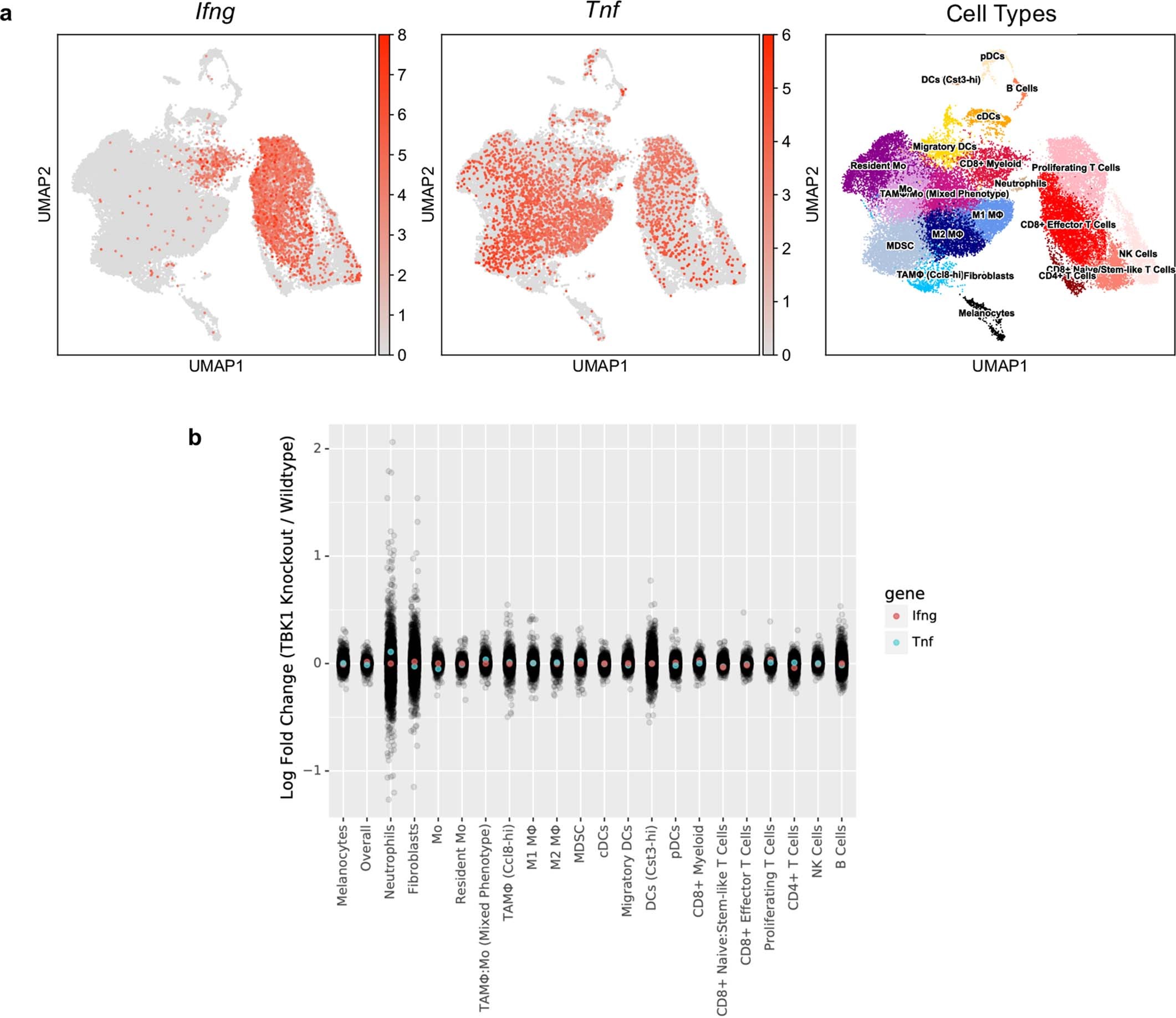

Extended Data Fig. 5: TNF and IFNγ expression in B16 melanoma tumours.

From: Targeting TBK1 to overcome resistance to cancer immunotherapy

Extended Data Fig. 5: TNF and IFNγ expression in B16 melanoma tumours.The alternative text for this image may have been generated using AI.

a, UMAP plot of RNA-sequenced single cells with colouring of Ifng and Tnf expression with cell types referenced (right). b, log-fold change of Ifng (light red) and Tnf (light blue) expression across lineage-defined cell clusters (Tbk1-null/control).
